環境：

主機:WIN7

開發環境:MDK4.72

MCU:STM32F407VGT6

STM32F4啟動與STM32F10X不同,時鐘已經默認配置好.

1.啟動代碼:

文件:startup_stm32f4xx.s

[cpp] view plain copy

 在CODE上查看代碼片派生到我的代碼片

; Reset handler

Reset_Handler    PROC

                 EXPORT  Reset_Handler             [WEAK]

        IMPORT  SystemInit

        IMPORT  __main

                 LDR     R0, =SystemInit

                 BLX     R0

                 LDR     R0, =__main

                 BX      R0

                 ENDP

可以看出,在進入main函數之前,系統調用了SystemInit函數.

2.SystemInit函數分析

SystemInit函數位于system_stm32f4xx.c文件中.此文件提供幾個宏定義可以設置各個時鐘:

在CODE上查看代碼片派生到我的代碼片

/************************* PLL Parameters *************************************/

/* PLL_VCO = (HSE_VALUE or HSI_VALUE / PLL_M) * PLL_N */

#define PLL_M      25

#define PLL_N      336

/* SYSCLK = PLL_VCO / PLL_P */

#define PLL_P      2

/* USB OTG FS, SDIO and RNG Clock =  PLL_VCO / PLLQ */

#define PLL_Q      7

/******************************************************************************/

而晶振頻率則是在文件stm32f4xx.h中進行設置:

外部晶振:

在CODE上查看代碼片派生到我的代碼片

#if !defined  (HSE_VALUE)

  #define HSE_VALUE    ((uint32_t)25000000) /*!< Value of the External oscillator in Hz */

#endif /* HSE_VALUE */

內部晶振:

在CODE上查看代碼片派生到我的代碼片

#if !defined  (HSI_VALUE)

  #define HSI_VALUE    ((uint32_t)16000000) /*!< Value of the Internal oscillator in Hz*/

#endif /* HSI_VALUE */

綜上,可以得出默認配置中:

鎖相環壓腔振蕩器時鐘PLL_VCO = 25 / 25 * 336 = 336MHz

系統時鐘SYSCLK = 336 / 2 = 168MHz

USB,SD卡時鐘 = 336 / 7 = 48MHz

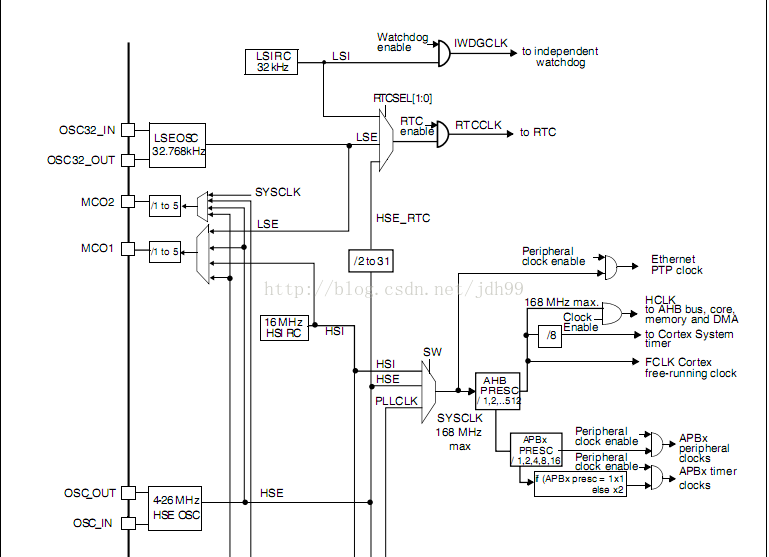

時鐘圖:

SystemInit函數代碼:

 在CODE上查看代碼片派生到我的代碼片

/**

  * @brief  Setup the microcontroller system

  *         Initialize the Embedded Flash Interface, the PLL and update the

  *         SystemFrequency variable.

  * @param  None

  * @retval None

  */

void SystemInit(void)

{

  /* FPU settings ------------------------------------------------------------*/

  #if (__FPU_PRESENT == 1) && (__FPU_USED == 1)

    SCB->CPACR |= ((3UL << 10*2)|(3UL << 11*2));  /* set CP10 and CP11 Full Access */

  #endif

  /* Reset the RCC clock configuration to the default reset state ------------*/

  /* Set HSION bit */

  RCC->CR |= (uint32_t)0x00000001;

  /* Reset CFGR register */

  RCC->CFGR = 0x00000000;

  /* Reset HSEON, CSSON and PLLON bits */

  RCC->CR &= (uint32_t)0xFEF6FFFF;

  /* Reset PLLCFGR register */

  RCC->PLLCFGR = 0x24003010;

  /* Reset HSEBYP bit */

  RCC->CR &= (uint32_t)0xFFFBFFFF;

  /* Disable all interrupts */

  RCC->CIR = 0x00000000;

#ifdef DATA_IN_ExtSRAM

  SystemInit_ExtMemCtl();

#endif /* DATA_IN_ExtSRAM */

  /* Configure the System clock source, PLL Multiplier and Divider factors,

     AHB/APBx prescalers and Flash settings ----------------------------------*/

  SetSysClock();

  /* Configure the Vector Table location add offset address ------------------*/

#ifdef VECT_TAB_SRAM

  SCB->VTOR = SRAM_BASE | VECT_TAB_OFFSET; /* Vector Table Relocation in Internal SRAM */

#else

  SCB->VTOR = FLASH_BASE | VECT_TAB_OFFSET; /* Vector Table Relocation in Internal FLASH */

#endif

}

3.SetSysClock函數分析

在SetSysClock函數中,配置了系統時鐘,PLL倍頻以及分頻系數:

 在CODE上查看代碼片派生到我的代碼片

/**

  * @brief  Configures the System clock source, PLL Multiplier and Divider factors,

  *         AHB/APBx prescalers and Flash settings

  * @Note   This function should be called only once the RCC clock configuration

  *         is reset to the default reset state (done in SystemInit() function).

  * @param  None

  * @retval None

  */

static void SetSysClock(void)

{

/******************************************************************************/

/*            PLL (clocked by HSE) used as System clock source                */

/******************************************************************************/

  __IO uint32_t StartUpCounter = 0, HSEStatus = 0;

  /* Enable HSE */

  RCC->CR |= ((uint32_t)RCC_CR_HSEON);

  /* Wait till HSE is ready and if Time out is reached exit */

  do

  {

    HSEStatus = RCC->CR & RCC_CR_HSERDY;

    StartUpCounter++;

  } while((HSEStatus == 0) && (StartUpCounter != HSE_STARTUP_TIMEOUT));

  if ((RCC->CR & RCC_CR_HSERDY) != RESET)

  {

    HSEStatus = (uint32_t)0x01;

  }

  else

  {

    HSEStatus = (uint32_t)0x00;

  }

  if (HSEStatus == (uint32_t)0x01)

  {

    /* Select regulator voltage output Scale 1 mode, System frequency up to 168 MHz */

    RCC->APB1ENR |= RCC_APB1ENR_PWREN;

    PWR->CR |= PWR_CR_VOS;

    /* HCLK = SYSCLK / 1*/

    RCC->CFGR |= RCC_CFGR_HPRE_DIV1;

    /* PCLK2 = HCLK / 2*/

    RCC->CFGR |= RCC_CFGR_PPRE2_DIV2;

    /* PCLK1 = HCLK / 4*/

    RCC->CFGR |= RCC_CFGR_PPRE1_DIV4;

    /* Configure the main PLL */

    RCC->PLLCFGR = PLL_M | (PLL_N << 6) | (((PLL_P >> 1) -1) << 16) |

                   (RCC_PLLCFGR_PLLSRC_HSE) | (PLL_Q << 24);

    /* Enable the main PLL */

    RCC->CR |= RCC_CR_PLLON;

    /* Wait till the main PLL is ready */

    while((RCC->CR & RCC_CR_PLLRDY) == 0)

    {

    }

    /* Configure Flash prefetch, Instruction cache, Data cache and wait state */

    FLASH->ACR = FLASH_ACR_ICEN |FLASH_ACR_DCEN |FLASH_ACR_LATENCY_5WS;

    /* Select the main PLL as system clock source */

    RCC->CFGR &= (uint32_t)((uint32_t)~(RCC_CFGR_SW));

    RCC->CFGR |= RCC_CFGR_SW_PLL;

    /* Wait till the main PLL is used as system clock source */

    while ((RCC->CFGR & (uint32_t)RCC_CFGR_SWS ) != RCC_CFGR_SWS_PLL);

    {

    }

  }

  else

  { /* If HSE fails to start-up, the application will have wrong clock

         configuration. User can add here some code to deal with this error */

  }

}

如果外部時鐘啟動失敗,系統會使用內部時鐘

默認配置:

HCLK = SYSCLK / 1 = 168MHz

PCLK2 = HCLK / 2 = 84MHz

PCLK1 = HCLK / 4 = 42MHz
