串口2的配置(一根杜邦線不行糾結了半天)

void USART2_Initialise( u32 bound )

{

    GPIO_InitTypeDef GPIO_InitStructure;

    NVIC_InitTypeDef NVIC_InitStructure;

    USART_InitTypeDef USART_InitStructure;

    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA|RCC_APB2Periph_AFIO,ENABLE);

/* Enable the USART2 Pins Software Remapping */

    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA , ENABLE);

    RCC_APB1PeriphClockCmd(RCC_APB1Periph_USART2, ENABLE);

    /* Configure USART2 Rx (PA.03) as input floating */

    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_3;

    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IN_FLOATING;

    GPIO_Init(GPIOA, &GPIO_InitStructure);

    /* Configure USART2 Tx (PA.02) as alternate function push-pull */

    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2;

    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;

    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AF_PP;

    GPIO_Init(GPIOA, &GPIO_InitStructure);

    /* Enable the USART2 Interrupt */

    NVIC_InitStructure.NVIC_IRQChannel = USART2_IRQn;

    NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 1;

    NVIC_InitStructure.NVIC_IRQChannelSubPriority = 1;

    NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;

    NVIC_Init(&NVIC_InitStructure);

    USART_InitStructure.USART_BaudRate = bound;

    USART_InitStructure.USART_WordLength = USART_WordLength_8b;

    USART_InitStructure.USART_StopBits = USART_StopBits_1;

    USART_InitStructure.USART_Parity = USART_Parity_No;

    USART_InitStructure.USART_HardwareFlowControl = USART_HardwareFlowControl_None;

    USART_InitStructure.USART_Mode = USART_Mode_Rx | USART_Mode_Tx;

    USART_Init(USART2, &USART_InitStructure);

    USART_ITConfig(USART2, USART_IT_RXNE, ENABLE);

    USART_Cmd(USART2, ENABLE);

}

原理與串口一相同,只是io口不同,所在總線不同

ADC1的配置

void  Adc_Init(void)

{

ADC_InitTypeDef ADC_InitStructure;

GPIO_InitTypeDef GPIO_InitStructure;

RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA |RCC_APB2Periph_ADC1, ENABLE );

RCC_ADCCLKConfig(RCC_PCLK2_Div6);

GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1;

GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;

GPIO_Init(GPIOA, &GPIO_InitStructure);

ADC_DeInit(ADC1);

ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;

ADC_InitStructure.ADC_ScanConvMode = DISABLE;

ADC_InitStructure.ADC_ContinuousConvMode = DISABLE;

ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;

ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;

ADC_InitStructure.ADC_NbrOfChannel = 1;

ADC_Init(ADC1, &ADC_InitStructure);

        ADC_Cmd(ADC1, ENABLE);

ADC_ResetCalibration(ADC1);

while(ADC_GetResetCalibrationStatus(ADC1));

ADC_StartCalibration(ADC1);

while(ADC_GetCalibrationStatus(ADC1));

}

io口配置與點亮第一個led燈類似,模擬輸入模式即可

與配置其他功能類似,ADC的配置也是一個結構體變量傳入參數

ADC_InitTypeDef結構體變量名

RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA |RCC_APB2Periph_ADC1, ENABLE );

使能ADC1通道時鐘

RCC_ADCCLKConfig(RCC_PCLK2_Div6); 設置ADC分頻因子 72/6=12M

ADC_DeInit(ADC1);復位ADC

ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;ADC工作模式ADC1和ADC2工作在獨立模式

ADC_InitStructure.ADC_ScanConvMode = DISABLE;模數轉換在單通道模式

ADC_InitStructure.ADC_ContinuousConvMode = DISABLE;模式轉換工作在單次轉換模式

ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;軟件觸發

ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;ADC數據對齊方式

ADC_InitStructure.ADC_NbrOfChannel = 1;順序進行轉換的ADC通道數

ADC_Init(ADC1, &ADC_InitStructure);傳入結構體地址,初始化ADC

 ADC_Cmd(ADC1, ENABLE);使能ADC

ADC_ResetCalibration(ADC1);使能復位校準

while(ADC_GetResetCalibrationStatus(ADC1));等待復位校準結束

ADC_StartCalibration(ADC1);開啟AD校準

while(ADC_GetCalibrationStatus(ADC1));等待校準結束

獲取ADC函數傳入參數adc通道號

u16 Get_Adc(u8 ch)

{

ADC_RegularChannelConfig(ADC1, ch, 1, ADC_SampleTime_239Cycles5 );

ADC_SoftwareStartConvCmd(ADC1, ENABLE);

while(!ADC_GetFlagStatus(ADC1, ADC_FLAG_EOC ));

return ADC_GetConversionValue(ADC1);

}

ADC_RegularChannelConfig(ADC1, ch, 1, ADC_SampleTime_239Cycles5 );ADC1,通道1,采樣時間為239.5個周期

ADC_SoftwareStartConvCmd(ADC1, ENABLE);使能指定ADC1軟件轉換啟動功能

while(!ADC_GetFlagStatus(ADC1, ADC_FLAG_EOC ));等待轉換結束

return ADC_GetConversionValue(ADC1);返回最后一次ADC的轉換結果

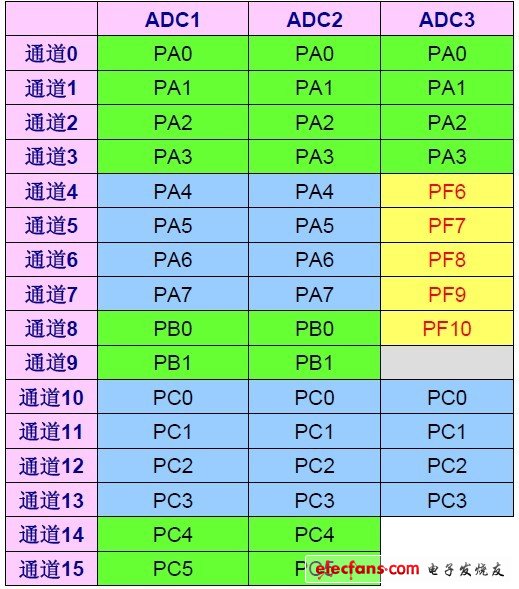

ADC通道對應io口如圖

         p=adcx;

p=(3.3/4096)*p;

         p=p*10000;

         v=(int)p;

         USART_SendData(USART2,0x76);

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,0x3D);

         while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,(48+v/10000));

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,0x2E);

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,(48+v%10000/1000));

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,(48+v%10000%1000/100));

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,(48+v%10000%1000%100/10));

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,(48+v%10000%1000%100%10));

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

USART_SendData(USART2,0x0A);

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);

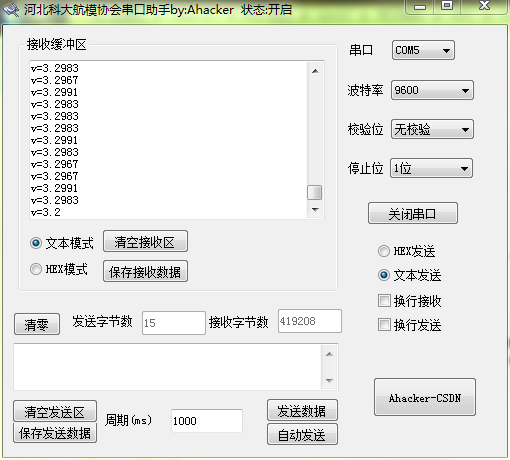

采集adc以ASCII方式發送給上位機

while(USART_GetFlagStatus(USART2,USART_FLAG_TC)!=SET);等待發送完成
