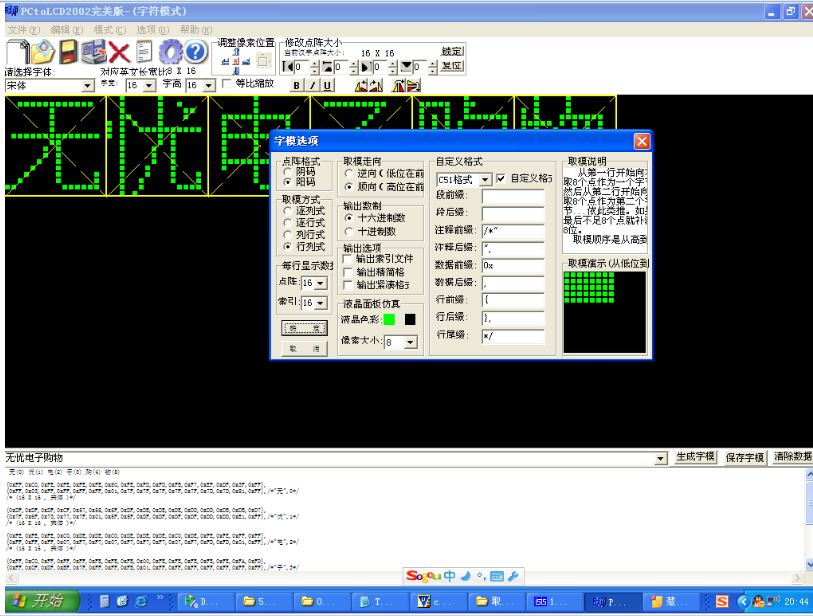

下面是16X192點陣取模軟件的設置截圖

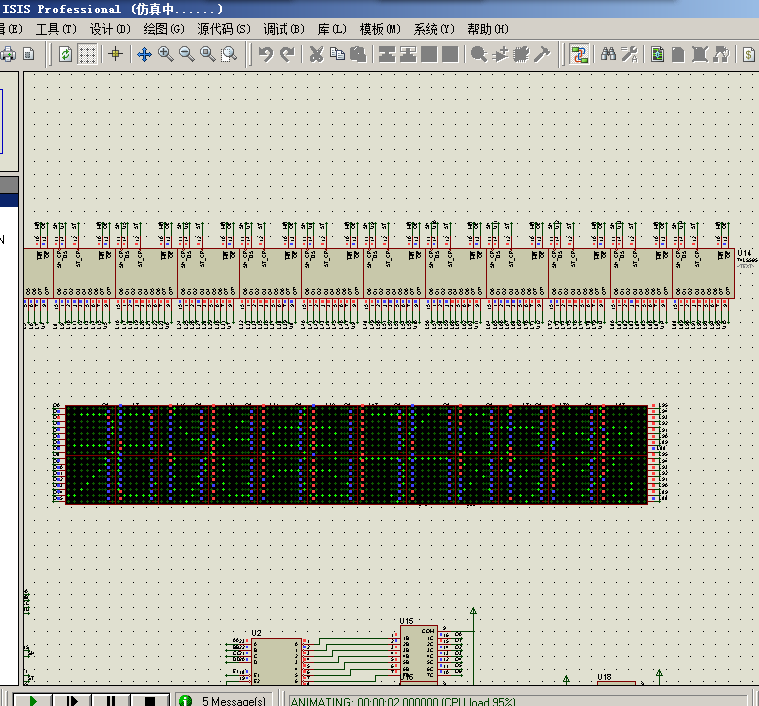

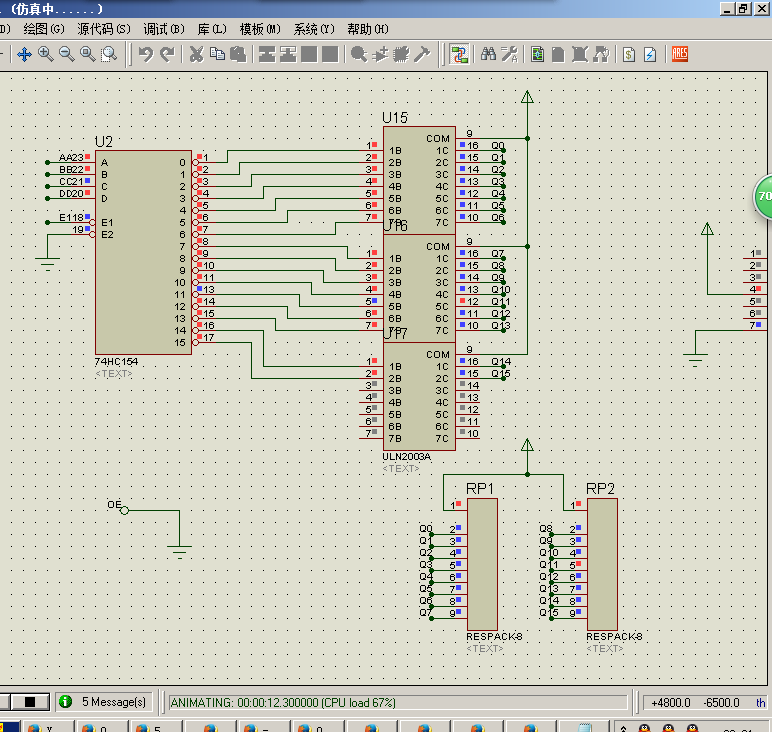

下面是16X192點陣的仿真原理圖：

單片機源程序：

#include

sbit ST=P3^5;

sbit E1=P3^4;

sbit MR=P3^7;

char cashe[12];

char code wd[12][16]={

{0xFF,0xC0,0xFE,0xFE,0xFE,0xFE,0x80,0xFE,0xFD,0xFD,0xFB,0xF7,0xEF,0xDF,0x3F,0xFF},

{0xFF,0x03,0xFF,0xFF,0xFF,0xFF,0x01,0x7F,0x7F,0x7F,0x7F,0x7F,0x7D,0x7D,0x81,0xFF},/*"無",0*/

/* (16 X 16 , 宋體 )*/

{0xDF,0xDF,0xDF,0xCF,0x57,0x58,0x5F,0xDF,0xDE,0xDE,0xDE,0xDD,0xDD,0xDB,0xDB,0xD7},

{0x7F,0x6F,0x73,0x77,0x7F,0x01,0x5F,0x5F,0xDF,0xDF,0xDF,0xDF,0xDD,0xDD,0xE1,0xFF},/*"憂",1*/

/* (16 X 16 , 宋體 )*/

{0xFE,0xFE,0xFE,0xC0,0xDE,0xDE,0xC0,0xDE,0xDE,0xDE,0xC0,0xDE,0xFE,0xFE,0xFF,0xFF},

{0xFF,0xFF,0xFF,0x07,0xF7,0xF7,0x07,0xF7,0xF7,0xF7,0x07,0xF7,0xFD,0xFD,0x01,0xFF},/*"電",2*/

/* (16 X 16 , 宋體 )*/

{0xFF,0xC0,0xFF,0xFF,0xFF,0xFE,0xFE,0xFE,0x00,0xFE,0xFE,0xFE,0xFE,0xFE,0xFA,0xFD},

{0xFF,0x0F,0xDF,0xBF,0x7F,0xFF,0xFF,0xFB,0x01,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF},/*"子",3*/

/* (16 X 16 , 宋體 )*/

{0xFF,0x83,0xBB,0xAB,0xAA,0xAA,0xA9,0xAB,0xAB,0xAA,0xEE,0xD7,0xDB,0xBB,0x7F,0xFF},

{0x7F,0x3F,0x7F,0x01,0xFD,0xFD,0xBD,0xBD,0x5D,0xED,0x05,0xED,0xFD,0xFD,0xEB,0xF7},/*"購",4*/

/* (16 X 16 , 宋體 )*/

{0xEF,0xEF,0xAF,0xAE,0x82,0xAD,0x6B,0xEB,0xE6,0xCD,0x2B,0xEF,0xEE,0xED,0xEB,0xFF},

{0x7F,0x7F,0x7F,0x03,0xAB,0xAB,0x6B,0x6B,0xDB,0xDB,0xBB,0x7B,0xFB,0xFB,0xD7,0xEF},/*"物",5*/

/* (16 X 16 , 宋體 )*/

};

void del(int i)//============================//延時程序

{while(i--);}

aline()        ////=======================發送一行的顯示程序

{

char i=0;

TI=0;

for(i=0;i<12;i++)

{SBUF=cashe[i];while(~TI);TI=0;} //將緩存中的信息轉存入595的存儲器中，到此不顯示

}

main()

{

int m=0,n=0;

        TI=0;

        SM0=0;

        SM1=0;

E1=0;

while(1)

for(m=0;m<16;m++)      //共有16行  循環16次顯示這16行  串行的595送出行的數據

        {                                        //由74hc154選中要顯示的行

        for(n=0;n<12;n++)         //這個for循環用來向緩存數組中裝載要顯示的內容

                {cashe[11-n]=wd[n][m];}  //將第m個字的第n行信息裝載  ，因為595串接 數據第一個進去的會在最后一個595中，最后進去的會在第一個595中

    aline();     //將緩存中的一行信息載入595緩存中

        ST=0;ST=1; //595產生上升沿 輸出595鎖存的數據

        P2=m;  //選中要顯示的行輸出數據

        del(100);//延時一段時間，以造成視覺暫存效應

          }

}
