說明

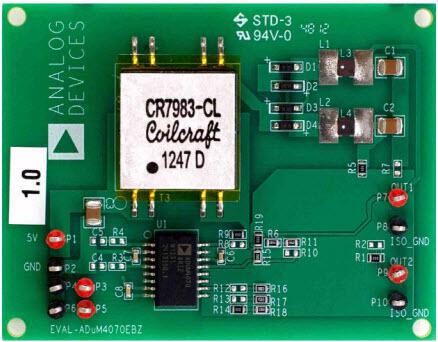

• EVAL-ADUM4070EBZ, Evaluation Board can be used for different applications of the ADuM4070 isolated switching regulator. With the ability to be configured as a circuit with either single or double-supply output, the board supports a variety of input/output configurations and multiple transformer options. It is equipped with an ADuM4070 regulator for voltage isolation, the regulator features integrated feedback and a switching frequency that can be set from 200 kHz to 1000 kHz. This user guide provides all the necessary details to set up and use the EVAL-ADuM4070EBZ board
