AD8009EBZ 評估板的設計和布局是為了能夠快速、準確地評估
器件的性能。為了實現該高速部件的最佳性能，我們特別關注信號和接地層布線以及
電源旁路。這些技術可用于指導系統應用中使用的 AD8009

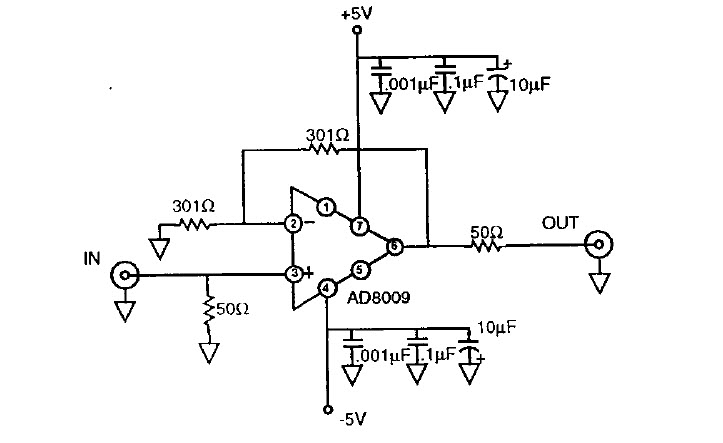

電路的布局。該板采用非反相、二倍增益電路配置設計，具有 50 歐姆輸入端接和 50 歐姆輸出后端端接
說明
-
AD8009EBZ, Evaluation Board is designed and laid out to enable rapid and accurate evaluation of the performance of the device. Special attention has been given to signal and ground-plane routing and supply bypassing in order to realize optimum performance of this high speed part. These techniques can be used for guidance in laying out an AD8009 circuit that is used in a system application. The board is designed with a non-inverting, gain-of-two circuit configuration with a 50 ohm input termination and 50 ohm output back-termination
主要特色
-
Number of Supplies
Single
-
Supply Voltage
5 V
