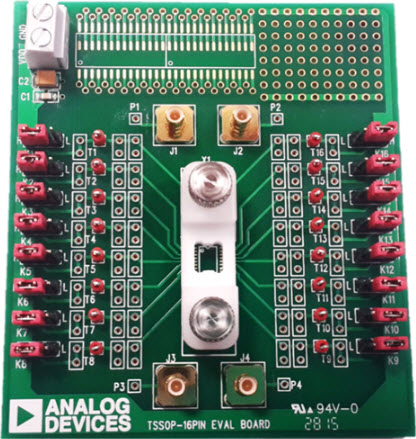

EVAL-16TSSOPEBZ 評估板可評估單獨購買的開關和
多路復用器產品組合中的 16 引腳 TSSOP
器件。 EVAL16TSSOPEBZ 附帶一個夾具，可將 16 引腳 TSSOP 器件固定到評估板上，無需焊接，從而使該板可重復用于多個器件。 16 引腳 TSSOP 器件可以夾緊或焊接到評估板的中心。該器件的每個引腳都有一個從 K1 到 K16 的相應鏈接，可設置為 VDD 或 GND。接線螺絲
端子提供 VDD 和 GND。板上的 SMB
連接器允許向設備提供額外的外部信號
說明
-
EVAL-16TSSOPEBZ, Evaluation Board evaluates 16-lead TSSOP devices in the Switches and Multiplexers Portfolio that are purchased separately. A clamp is supplied with the EVAL16TSSOPEBZ to secure a 16-lead TSSOP device to the evaluation board without the need for soldering, making the board reusable for multiple devices. A 16-lead TSSOP device can be clamped or soldered to the center of the evaluation board. Each pin of the device has a corresponding link from K1 to K16 that can be set to either VDD or GND. A wire screw terminal supplies VDD and GND. SMB connectors on the board allow additional external signals to be supplied to the device
