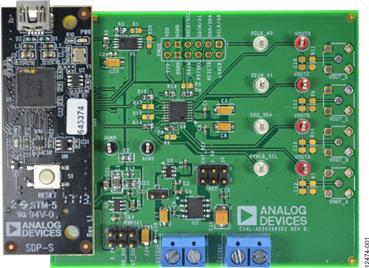

EVAL-AD5686RSDZ,使用 AD5686R、16 位、四通道電壓輸出
數模轉換器的評估板。該
器件包括一個 2.5 V、2 ppm/攝氏度內部基準(默認啟用)和一個增益選擇引腳,可提供 2.5 V(增益 = 1)或 5 V(增益 = 2)的滿量程輸出。該器件采用 2.7V 至 5.5V 單
電源供電,設計保證單調性,并具有低于 0.1% FSR
增益誤差和 1.5 mV 失調誤差性能
說明
-
EVAL-AD5686RSDZ, Evaluation Board using AD5686R, 16-Bit, Quad Channel Voltage Output Digital to Analog Converter. The device includes a 2.5 V, 2 ppm/degree Celsius internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance
主要特色
-
16 Bit
-
Number of Channels
4CH
