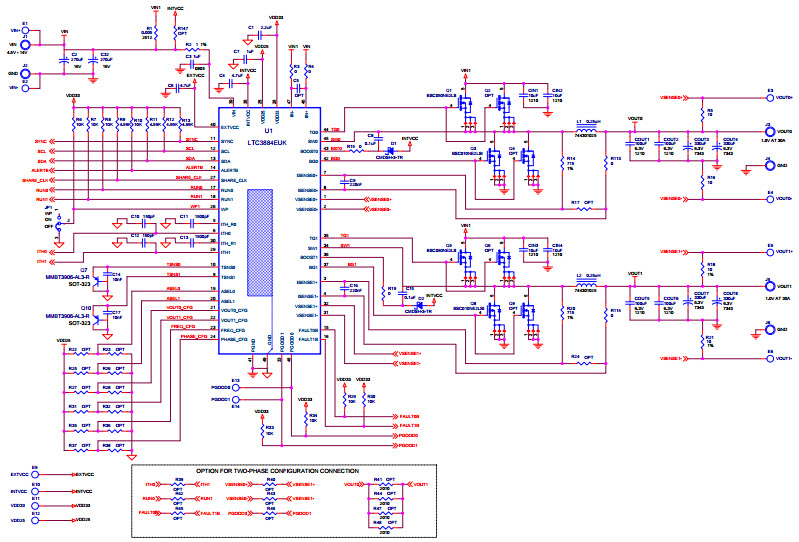

DC2165A，LTC3884EUK 雙 PMBU 降壓演示板，4.5V = Vin = 14V，Vout0/Vout1 = 0.5V 至 1.8V @ 30A。該演示
電路是一款高效率、高密度、雙輸出降壓
轉換器，輸入范圍為 4.5V 至 14V。輸出電壓在0.5V至5.5V范圍內可調，當輸出電壓在0.5V至1.8V范圍內時，每個輸出可提供高達30A的
負載電流。該演示板采用 LTC3884，這是一款具有超低 DCR 感應功能的雙輸出多相降壓
控制器，并集成了數字
電源系統管理
說明
-
DC2165A, Demo Board for LTC3884EUK Dual PMBUs Buck with 4.5V = Vin = 14V, Vout0/Vout1 = 0.5V to 1.8V @ 30A. The Demonstration circuit is a high efficiency, high density, dual-output buck converter with a 4.5V to 14V input range. The output voltage is adjustable from 0.5V to 5.5V, and each output can supply up to 30A of load current when the output voltage is within a 0.5V to 1.8V range. This demo board features the LTC3884, a dual-output poly phase step-down controller with ultra-low DCR sensing and incorporates digital power system management
主要特色
-
Conversion Type
DC to DC
-
Input Voltage
4.5 to 14 V
-
Output Voltage
0.5 to 1.8 V
-
Output Current
30 A
-
Efficiency
88.8 %
-
Topology
Buck
