具有 55mA 輸入電流限制的 5V 穩壓器

使用 Analog Devices 的 LTC3630 的參考設計

設計簡介

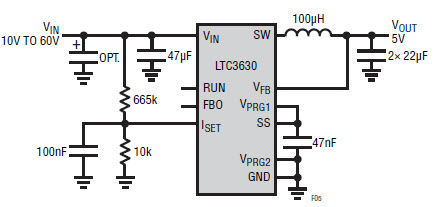

具有 55mA 輸入電流限制的 5V 穩壓器基于 LTC3630，提供適用于高效率、高電壓應用的多種功能

說明

5V Regulator with 55mA Input Current Limit based LTC3630 which offers a mixture of features useful in high efficiency, high voltage applications

主要特色

Conversion Type

DC to DC
Input Voltage

10 to 60 V
Output Voltage

5 V
Topology

Buck

相關文檔

dn512

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
LTC3630EMSE#PBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 65V Synchronous Step Down Single-Out 0.8V to 65V 0.5A Automotive 12-Pin MSOP EP Tube	點擊下載
LTC3630EDHC#PBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 65V Synchronous Step Down Single-Out 0.8V to 65V 0.5A Automotive 16-Pin DFN EP Tube	點擊下載
LTC3630IMSE#TRPBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 65V Synchronous Step Down Single-Out 0.8V to 65V 0.5A Automotive 12-Pin MSOP EP T/R	點擊下載
LTC3630IDHC#TRPBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 65V Synchronous Step Down Single-Out 0.8V to 65V 0.5A Automotive 16-Pin DFN EP T/R	點擊下載
LTC3630AEMSE#PBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V 0.5A Automotive 12-Pin MSOP EP Tube	點擊下載
LTC3630AHDHC#PBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V 0.5A Automotive 16-Pin DFN EP Tube	點擊下載
LTC3630AIMSE#TRPBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V 0.5A Automotive 12-Pin MSOP EP T/R	點擊下載
LTC3630AHMSE#TRPBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V 0.5A Automotive 12-Pin MSOP EP T/R	點擊下載
LTC3630IMSE#PBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 65V Synchronous Step Down Single-Out 0.8V to 65V 0.5A Automotive 12-Pin MSOP EP Tube	點擊下載
LTC3630MPMSE#PBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 65V Synchronous Step Down Single-Out 0.8V to 65V 0.5A Automotive 12-Pin MSOP EP Tube	點擊下載
LTC3630AEMSE#TRPBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V 0.5A Automotive 12-Pin MSOP EP T/R	點擊下載
LTC3630AEDHC#TRPBF	DC to DC Converter and Switching Regulator Chip	Conv DC-DC 4V to 76V Synchronous Step Down Single-Out 0.8V to 76V 0.5A Automotive 16-Pin DFN EP T/R	點擊下載
