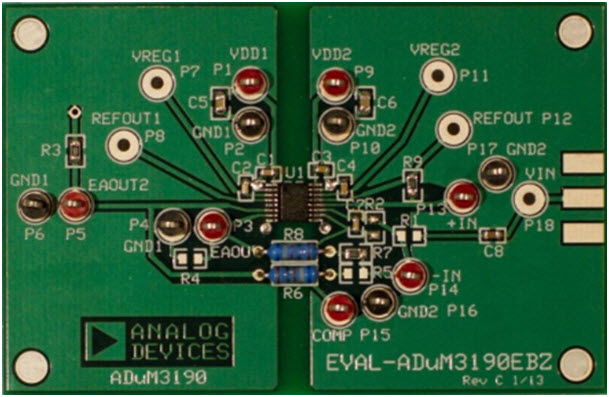

EVAL-ADUM3190EBZ 評估板支持基于 iCoupler 技術的 ADuM3190 隔離誤差
放大器。 ADuM3190 非常適合具有初級側控制器的線性反饋電源，與常用的
光耦合器和并聯
穩壓器解決方案相比，可改善瞬態響應、功率密度和穩定性。 ADuM3190 中包含一個寬帶
運算放大器，可用于設置各種常用的電源環路補償技術。 ADuM3190 的速度足夠快，允許
反饋環路對快速瞬態條件和過流條件做出反應。還包括一個高精度 1.225 V 參考電壓，用于與電源輸出設定點進行比較
說明
-
EVAL-ADUM3190EBZ, Evaluation Board supports the ADuM3190 isolated error amplifier based on iCoupler technology. The ADuM3190 is ideal for linear feedback power supplies with primary side controllers enabling improvements in transient response, power density, and stability as compared to commonly used optocoupler and shunt regulator solutions. Included in the ADuM3190 is a wideband operational amplifier that can be used to set up a variety of commonly used power supply loop compensation techniques. The ADuM3190 is fast enough to allow a feedback loop to react to fast transient conditions and over current conditions. Also included is a high accuracy 1.225 V reference to compare with the supply output set point
