STuW81300-EVB 評估套件允許用戶對 STuW81300 寬帶射頻/微波 PLL 小數/整數頻率合成器及其集成 VCO 和 LDO 進行編程和操作。該套件包括帶有圖形用戶界面 (STSW-RFSOL003) 的 PC 兼容軟件，允許用戶寫入和讀取所有設備
寄存器。這可以直接
控制電路功能，例如：工作頻率、參考頻率、輸入模式、
電荷泵電流和
低功耗模式。面向用戶的 GUI 有助于了解實驗室環境中測試的 STuW81300 設備的性能、功能和特性
說明
-

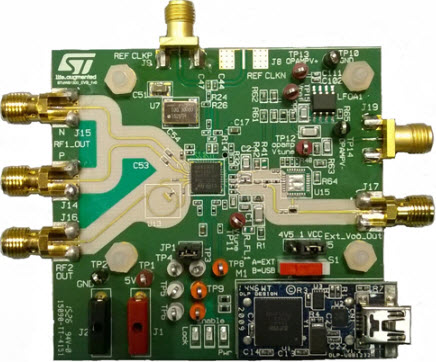

STuW81300-EVB, Evaluation Kit allows the user to program and operate the STuW81300 Wideband RF/Microwave PLL fractional/integer frequency synthesizer and its integrated VCOs and LDOs. The kit includes PC-compatible software with a Graphical User Interface (STSW-RFSOL003) allowing the user to write and read all device registers. This gives direct control of circuit functions such as: operating frequency, reference frequency, input mode, charge pump current and low-power modes. The user-oriented GUI aids understanding of the performance, features and characteristics of the STuW81300 device under test in a laboratory environment
