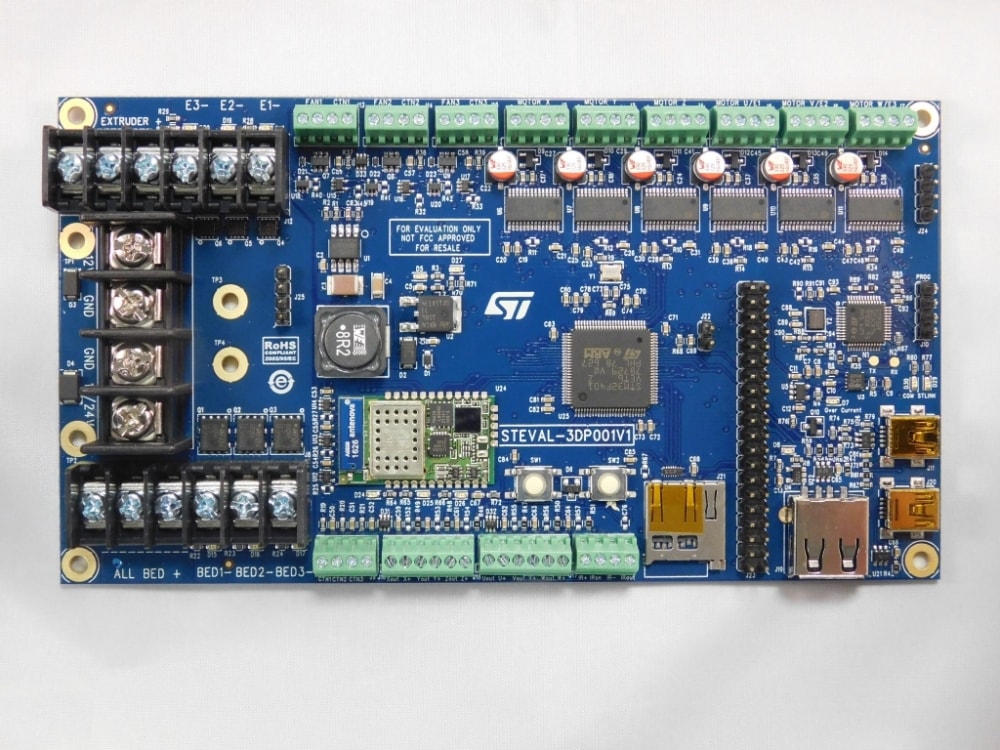

The STEVAL-3DP001V1 is a complete and integrated solution for driving all 3D printers on the market, including Delta models requiring more complex computation. The solution is ideal for both beginners and experienced users. It is autonomous and can be used with a software interface or with custom firmware thanks to the embedded STM32 microcontroller based on the ARM 32-bit Cortex M4 core. The STEVAL-3DP001V1 is designed to drive 3D printers providing several axes (6 motors), several extruders (1 to 3), and multi-zone heating bed (1 to 3).
The STEVAL-3DP001V1 features integrated WiFi connectivity, enabling the user to drive a 3D printer using a smartphone or tablet. The solution is also designed to work with 3D printer tools, such as Pronterface. USB connectivity is available through Virtual COM port, mini USB OTG and Dongle USB A. Moreover, the board includes a complete debug solution (STLINK-V2), a tool that is appreciated by developers.
The STEVAL-3DP001V1 allows connection to another board (e.g. Raspberry board or user board), with a connector that provides drive power (5 V - 3.3 V) and digital interface (SPI-I2C-ADC-GPIOS-SD-USB).
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STM32F103CB | STM32主流MCU | 主流增強型ARM Cortex-M3 MCU，具有128 KB Flash、72 MHz CPU、電機控制、USB和CAN | 點擊下載 |
| STM32F401VE | STM32高性能MCU | 帶DSP和FPU的高性能基本型系列ARM Cortex-M4 MCU，具有512 KB Flash、84 MHz CPU和ART加速器 | 點擊下載 |
| L6474 | 步進電機驅動器 | 高達16微步的步進電機驅動器，具有SPI和高級電流控制 | 點擊下載 |
