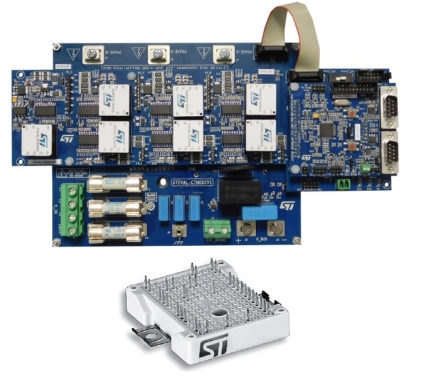

The STEVAL-HKI001V1 is an industrial drive evaluation system designed to demonstrate the capabilities of the A2C35S12M3-F IGBT power module for motor control applications.
It offers a solution for single- or three-phase main input with a converter inverter brake (CIB) topology able to handle a motor current up to 35 A (power module maximum current rating).
The hardware platform is a stackable solution consists of the power stage (STEVAL-CTM002V1), which contains the power module and current sensing circuitry, and the driving kit (STEVAL-CTM001V1) connected via external connectors.
The STEVAL-CTM001V1 driving kit consists of a STEVAL-CTM001V1C control board based on the STM32F303RBT7 microcontroller able to execute the field oriented control (FOC) algorithm to obtain the best performance in all motor control applications, and the STEVAL-CTM001V1D driving board based on the new galvanically isolated STGAP1AS gapDRIVE?, with suitable circuitry to drive the embedded IGBTs in the power module.
The control board has RS232 and CAN external interfaces to let you monitor and control your application on the evaluation system via PC.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| STGAP1AS | 低壓 MOSFET 驅動器 | 汽車用電流隔離單重柵極驅動器 | 點擊下載 |
| A2C35S12M3-F | ACEPACK功率模塊 | ACEPACK 2整流逆變制動1200 V、35 A溝槽柵場截止IGBT M系列，軟二極管和NTC | 點擊下載 |
