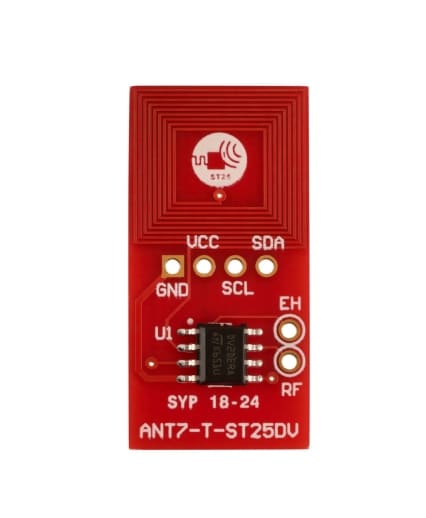

The ANT7-T-ST25DV04K antenna reference board is a ready-to-use PCB that features an ST25DV04K dual interface EEPROM connected to a 14 mm x 14 mm, 13.56 MHz etched RF double layer antenna on one side, and to an I2C bus on the other side.
This demonstration board allows system designers to evaluate the ST25DV04K performance and capabilities, and to get started with their design.
To demonstrate the energy harvesting function the ANT7-T-ST25DV04K can be used in conjunction with the ST DEMO-CR95HF-A board.
The board design and the Gerber files can be downloaded from www.st.com.
If externally powered, supply has to be safety extra-low voltage (SELV) according to EN60950-1 (< 5 V, < 15 W). The power supply shall be classified ES1 (electrical energy source class 1), PS1 (electrical power source class 1) according to EN62368-1.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| ST25DV04K | ST25 動態NFC/RFID標簽 | 4-Kbit動態NFC/RFID標簽NFC Forum type V，具有I2C接口、快速傳輸模式和能量捕獲 | 點擊下載 |
