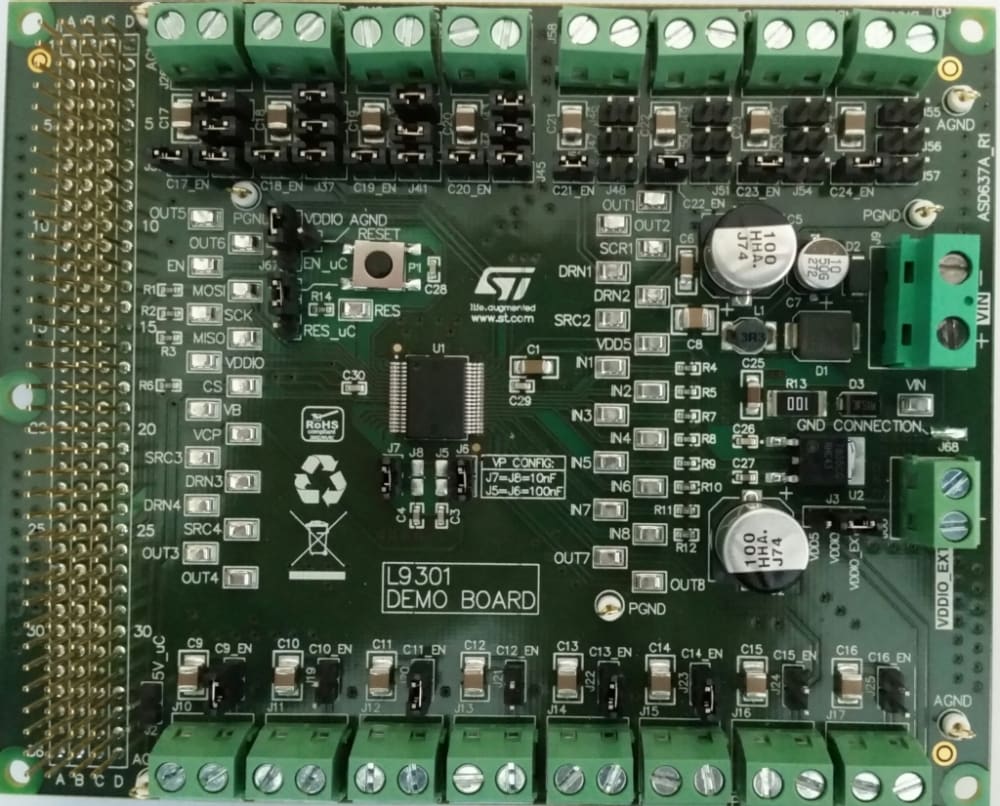

The EVAL-L9301 is an Evaluation Board designed to evaluate L9301, a smart power device mainly for ABS valves applications.
L9301 is able to drive electronic on-off valves with or without external freewheeling diode.
The OUT1-8 can be driven by parallel input in PWM mode or SPI command. Through the SPI it is possible to configure the device parameters like configuration, Slew-rate, Overcurrent threshold, to send the drivers EVAL-L9301 commands and to read back the diagnosis results.
The device is protected against over temperature, open load, short to GND and short to Vbattery condition. The overcurrent diagnostics can be set in latched or unlatched mode for each channel.
This kit includes L9301 Demo Board; Firmware for SPC560P-DISP; Graphical User Interface developed in LabView environment Documentation, Demo board and GUI user manual.
主要特性
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| L9301 | 可配置高/低邊驅動/開關 | 八通道低側驅動器或四通道低側 + 四通道高側驅動器 | 點擊下載 |
