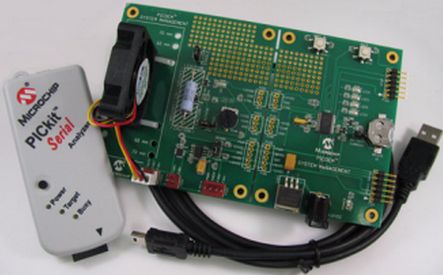

DM164123，PICDEM 系統管理套件

使用 Microchip Technology 的 PIC16F886-I 的參考設計

設計簡介

DM164123，PICDEM 系統管理套件。 PICDEM 系統管理套件是用于系統集成和各種應用設計的演示和培訓工具。 PIC 微控制器提供功能強大的集成外設，非常適合此類集成任務。系統集成是指將多個系統整合到一個統一的設計中。 PICDEM 系統管理板提供 I2C 通信總線，通常用于個人計算機或機架安裝服務器等應用中。總線連接多個設備，監控并記錄系統的健康狀況

說明

DM164123, PICDEM System Management Kit. The PICDEM System Management Kit is a demonstration and training tool for system integration and the design of a variety of applications. PIC microcontrollers provide powerful integrated peripherals, ideally suited for such integration tasks. System integration refers to the consolidation of multiple systems within a unified design. The PICDEM System Management Board provides an I2C communications bus, typically found in applications such as personal computers or rack mount servers. The bus connects to multiple devices to monitor and record the health and status of the system

主要特色

Embedded System Type

MCU
Family Name

PIC16
Core Processor

PIC
Platform

PICDEM

相關文檔

41304b

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
MCP9700T-E/LT	Temperature and Humidity Sensors	Temp Sensor Analog Automotive T/R	點擊下載
PIC16F886-I/SS	Microcontrollers	MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive 28-Pin SSOP Tube	點擊下載
PIC16F886-I/SO	Microcontrollers	MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive 28-Pin SOIC W Tube	點擊下載
PIC16F886-I/ML	Microcontrollers	MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive 28-Pin QFN EP Tube	點擊下載
PIC16F886-I/SP	Microcontrollers	MCU 8-bit PIC RISC 14KB Flash 2.5V/3.3V/5V Automotive 28-Pin SPDIP Tube	點擊下載
