因?yàn)榻?jīng)常在辦公室里面不知道實際室內溫度是多少，所以用ESP32做了一個工具來進行溫度&濕度的監測。在之前的文章當中，已經完成了ESP32的數據上云工作，如果要進行溫度/濕度的檢測。從原理上就是給ESP32連接對應的傳感器，并把傳感器的數據上報到阿里云物聯網平臺。

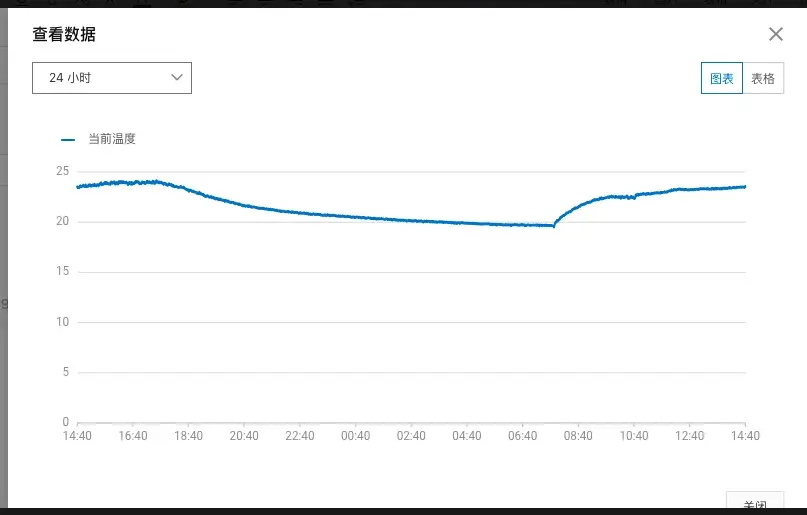

我們先來看看效果

這樣的話，每天上班前在家里可以先看看辦公室空調是否已經把公司的溫度提升上去，如果沒有提升上去。那說明可能空調有問題，今日的取暖只能靠抖了。

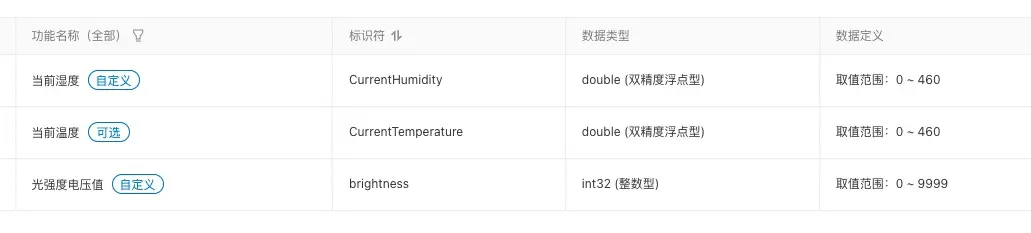

下面我們說說，這個實現怎么搞。首先在阿里云IOT平臺上，對我們之前的產品添加2個功能分別為當前濕度和當前溫度。

實現步驟如下：

根據所使用的硬件，進行board.json的配置。 因?yàn)槲覀兊?a href="http://www.nncyjs.com/zhuanti/eXbz50" style="color:#4595e6;" target="_blank">溫度傳感器使用的是sht3x, 使用I2C，在board.json的配置如下：

{

    'name': 'haasedu',

    'version': '1.0.0',

    'io': {

      'sht3x': {

        'type': 'I2C',

        'port': 0,

        'addrWidth': 7,

        'freq': 400000,

        'mode': 'master',

        'devAddr': 68

      }

    },

    'debugLevel': 'ERROR',

    'repl': 'disable'

  }

實現代碼

from driver import I2C

import sht3x

def report_iot_data(temperature, humidity ):

    upload_data = {'params': ujson.dumps({

        'CurrentHumidity': humidity, 'CurrentTemperature':temperature    })

    }

    device.postProps(upload_data)

    print('UPDATE IOT SUCCESS!!!')

    def get_light_temp_humi():

    temperature = humitureDev.getTemperature()

    humidity = humitureDev.getHumidity()

    report_iot_data(temperature, humidity)

    return temperature, humidity

i2cObj = I2C() i2cObj.open('sht3x')   humitureDev = sht3x.SHT3X(i2cObj)

    while True:

    data = get_light_temp_humi()

    utime.sleep(3)

進行燒錄就可以了。

獲取溫度濕潤還需要使用Haas團隊寫的一個驅動，代碼如下

sht3x.py

'''

Copyright (C) 2015-2021 Alibaba Group Holding Limited

    MicroPython's driver for CHT8305

    Author: HaaS

    Date:   2021/09/14

'''from micropython import constimport utimefrom driver import I2C'''

# sht3x commands definations

# read serial number:                            CMD_READ_SERIALNBR  0x3780

# read status register:                          CMD_READ_STATUS     0xF32D

# clear status register:                         CMD_CLEAR_STATUS    0x3041

# enabled heater:                                CMD_HEATER_ENABLE   0x306D

# disable heater:                                CMD_HEATER_DISABLE  0x3066

# soft reset:                                    CMD_SOFT_RESET      0x30A2

# accelerated response time:                     CMD_ART             0x2B32

# break, stop periodic data acquisition mode:    CMD_BREAK           0x3093

# measurement: polling, high repeatability:      CMD_MEAS_POLLING_H  0x2400

# measurement: polling, medium repeatability:    CMD_MEAS_POLLING_M  0x240B

# measurement: polling, low repeatability:       CMD_MEAS_POLLING_L  0x2416

'''class SHT3X(object):

    # i2cDev should be an I2C object and it should be opened before __init__ is called

    def __init__(self, i2cDev):

        self._i2cDev = None

        if not isinstance(i2cDev, I2C):

            raise ValueError('parameter is not an I2C object')

        # make AHB21B's internal object points to _i2cDev

        self._i2cDev = i2cDev

        self.start()

    def start(self):

        # make sure AHB21B's internal object is valid before I2C operation

        if self._i2cDev is None:

            raise ValueError('invalid I2C object')

        # send clear status register command - 0x3041 - CMD_CLEAR_STATUS

        cmd = bytearray(2)

        cmd[0] = 0x30

        cmd[1] = 0x41

        self._i2cDev.write(cmd)

        # wait for 20ms

        utime.sleep_ms(20)

        return 0

    def getTempHumidity(self):

        if self._i2cDev is None:

            raise ValueError('invalid I2C object')

        tempHumidity = [-1, 2]

        # start measurement: polling, medium repeatability - 0x240B - CMD_MEAS_POLLING_M

        # if you want to adjust measure repeatability, you can send the following commands:

        # high repeatability: 0x2400 - CMD_MEAS_POLLING_H

        # low repeatability: 0x2416  - CMD_MEAS_POLLING_L

        cmd = bytearray(2)

        cmd[0] = 0x24

        cmd[1] = 0x0b

        self._i2cDev.write(cmd)

        # must wait for a little before the measurement finished

        utime.sleep_ms(20)

        dataBuffer = bytearray(6)

        # read the measurement result

        self._i2cDev.read(dataBuffer)

        # print(dataBuffer)

        # calculate real temperature and humidity according to SHT3X-DIS' data sheet

        temp = (dataBuffer[0]<<8) | dataBuffer[1]

        humi = (dataBuffer[3]<<8) | dataBuffer[4]

        tempHumidity[1] = humi * 0.0015259022

        tempHumidity[0] = -45.0 + (temp) * 175.0 / (0xFFFF - 1)

        return tempHumidity    def getTemperature(self):

        data = self.getTempHumidity()

        return data[0]

    def getHumidity(self):

        data = self.getTempHumidity()

        return data[1]

    def stop(self):

        if self._i2cDev is None:

            raise ValueError('invalid I2C object')

        # stop periodic data acquisition mode

        cmd = bytearray(3)

        cmd[0] = 0x30

        cmd[1] = 0x93

        self._i2cDev.write(cmd)

        # wait for a little while

        utime.sleep_ms(20)

        self._i2cDev = None

        return 0

    def __del__(self):

        print('sht3x __del__')if __name__ == '__main__':

    '''

    The below i2c configuration is needed in your board.json.

    'sht3x': {

        'type': 'I2C',

        'port': 1,

        'addrWidth': 7,

        'freq': 400000,

        'mode': 'master',

        'devAddr': 68

    },

    '''

    print('Testing sht3x ...')

    i2cDev = I2C()

    i2cDev.open('sht3x')

    sht3xDev = SHT3X(i2cDev)

    '''

    # future usage:

    i2cDev = I2C('sht3x')

    sht3xDev = sht3x.SHT3X(i2cDev)

    '''

    temperature = sht3xDev.getTemperature()

    print('The temperature is: %f' % temperature)

    humidity = sht3xDev.getHumidity()

    print('The humidity is: %f' % humidity)

    print('Test sht3x done!')

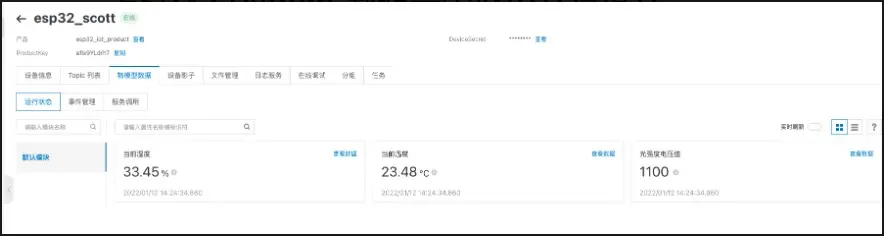

將程序代碼燒錄到開發板后，設備會聯網，并且每3秒上報一次數據。發布的數據， 我們可以在阿里云物聯網平臺上的設備的物模型數據中看到。

關于board.json的部分，需要根據自己采用的溫度/濕度傳感器，調整對應的GPIO的編號就行。
