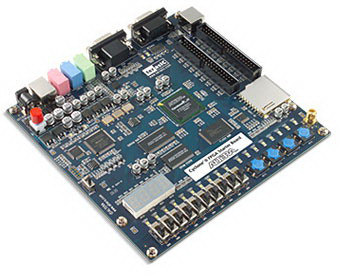

DK-CYCII-2C20NES，Cyclone II FPGA入門開發板

使用 Intel 的 EP2C20 的參考設計

設計簡介

DK-CYCII-2C20NES，Cyclone II FPGA 入門開發板提供集成功能，使用戶能夠開發和測試從簡單電路到各種多媒體項目的設計，而無需實現復雜的應用程序編程接口 (API)、主機控制軟件或 SRAM/SDRAM/閃存控制器

說明

DK-CYCII-2C20NES, Cyclone II FPGA Starter Development Board provides integrated features that enable users to develop and test designs that range from simple circuits to various multimedia projects, all without the need to implement complex application programming interfaces (APIs), host control software or SRAM/SDRAM/flash memory controllers

主要特色

Embedded System Type

FPGA
Family Name

Cyclone II

參考設計下載

Schematic Rev.1.1A

相關文檔

pgurl_kit-cyc2-2c20npgurl

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
93LC46B-I/SNG	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 2.5V/3.3V/5V 8-Pin SOIC N	點擊下載
93LC46BT-E/OT	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V Automotive 6-Pin SOT-23 T/R	點擊下載
93LC46BT-E/SN	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V Automotive 8-Pin SOIC N T/R	點擊下載
93LC46BT/SN	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin SOIC N T/R	點擊下載
93LC46BT-I/SN	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin SOIC N T/R	點擊下載
74HC245D(BJ)	Bus Transceivers	Bus XCVR Single 8-CH 3-ST 20-Pin SOIC T/R	點擊下載
MAX232DRG4	Bus Line Transceivers	Dual Transmitter/Receiver RS-232 16-Pin SOIC T/R	點擊下載
MAX232DWR	Bus Line Transceivers	Dual Transmitter/Receiver RS-232 16-Pin SOIC T/R	點擊下載
MAX232ID	Bus Line Transceivers	Dual Transmitter/Receiver RS-232 16-Pin SOIC Tube	點擊下載
MAX232IDWRG4	Bus Line Transceivers	Dual Transmitter/Receiver RS-232 16-Pin SOIC T/R	點擊下載
93LC46BT-I/MNY	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin TDFN EP T/R	點擊下載
93LC46B-I/PG	EEPROM	EEPROM Serial-Microwire 1K-bit 64 x 16 3.3V/5V 8-Pin PDIP	點擊下載
