EVALSF3-ICE3B0565，用于 LCD 顯示器的 12W、12V 交流轉直流單輸出電源的評估板

使用 Infineon Technologies AG 的 ICE3B0565 的參考設計

設計簡介

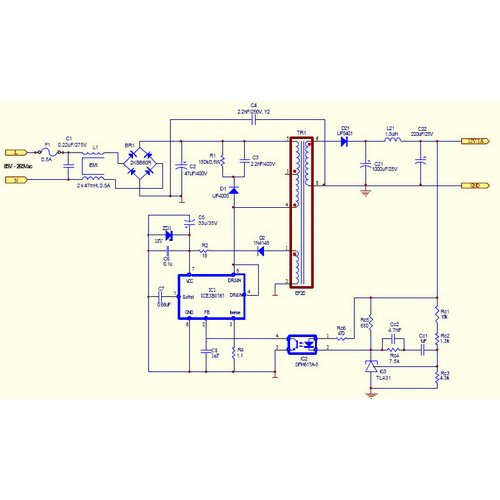

EVALSF3-ICE3B0565，用于 LCD 顯示器的 12W、12V AC 至 DC 單輸出電源的評估板。開關模式電源評估板采用典型的離線反激式轉換器拓?fù)湓O(shè)計，采用 ICE3B0565 F3 CoolSET

說明

EVALSF3-ICE3B0565, Evaluation Board for the 12W, 12V AC to DC Single Output Power Supply for LCD Monitor. The Switching mode power supply Evaluation Board designed in a typical off-line flyback converter topology that utilizes the ICE3B0565 F3 CoolSET

主要特色

Conversion Type

AC to DC
Input Voltage

85 to 265 (AC) V
Output Voltage

12 V
Output Current

1 A
Output Power

12 W
Efficiency

80 %
Topology

Flyback

相關文檔

anp0012-ice3b0565-12wsmps

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
SFH617A-3X017	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Tube	點擊下載
TL431CLPG	Voltage References	V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bag	點擊下載
SFH617A-3X016	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP	點擊下載
SFH617A-3	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP	點擊下載
SFH617A-3X007T	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R	點擊下載
SFH617A-3X017T	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD T/R	點擊下載
SFH617A-3X006	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP	點擊下載
SFH617A-3X001	Transistor and Photovoltaic Output Photocouplers	Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP	點擊下載
TL431CLPRAG	Voltage References	V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R	點擊下載
TL431CLPRPG	Voltage References	V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Fan-Fold	點擊下載
