VM801B43A-BK，嵌入式視頻引擎Plus開發模塊支持3.3/5V MCU轉接板，預裝4.3 - 480x272分辨率TFT LCD顯示面板，黑色邊框

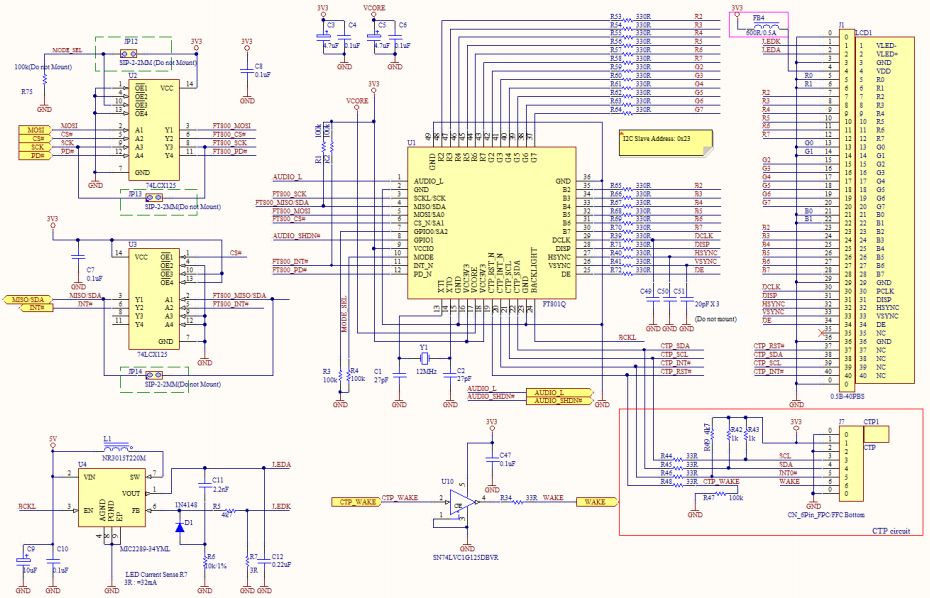

使用 FTDI Chip 的 FT801Q-R 的參考設計

設計簡介

VM801B43A-BK，嵌入式視頻引擎增強版開發模塊，支持 3.3/5V MCU 適配器板，預裝 4.3 - 480x272 分辨率 TFT LCD 顯示面板，黑色邊框。該模塊充當 SPI 從設備，需要 SPI 主設備來實現正確的微控制器接口和系統集成。 VM801B 采用 FT801 嵌入式視頻引擎 EVE。 FT801芯片的圖形、音頻和觸摸功能可以通過VM801B訪問

說明

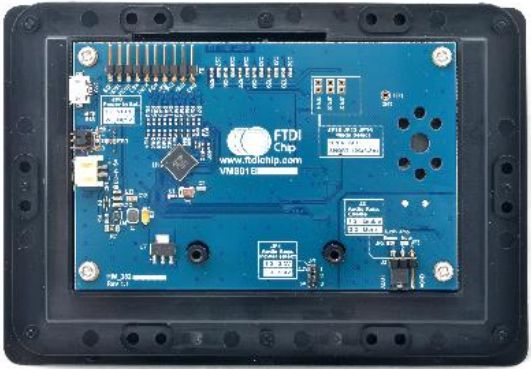

VM801B43A-BK, Embedded Video Engine Plus Development Module supports 3.3/5V MCU Adapter Board, 4.3 - 480x272 resolution TFT LCD display panel preinstalled, black bezel. This module behaves as an SPI slave and requires a SPI Master for proper microcontroller interfacing and system integration. The VM801B utilizes the FT801 Embedded Video Engine, EVE. Graphic, audio and touch features of the FT801 chip can be accessed with the VM801B

主要特色

Display Type

4.3" 480x272 Pixel TFT LCD Display

解決方案框圖

相關文檔

ds_vm801b

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
74LCX125BQX	Buffers and Line Drivers	Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin DQFN EP T/R	點擊下載
74LCX125MTCX	Buffers and Line Drivers	Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W T/R	點擊下載
TPA6205A1DRBTG4	Audio Amplifiers	Audio Amp Speaker 1-CH Mono 1.25W Class-AB 8-Pin VSON EP T/R	點擊下載
74LCX125M	Buffers and Line Drivers	Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N Tube	點擊下載
TPA6205A1DRBR	Audio Amplifiers	Audio Amp Speaker 1-CH Mono 1.25W Class-AB 8-Pin VSON EP T/R	點擊下載
TPA6205A1DGN	Audio Amplifiers	Audio Amp Speaker 1-CH Mono 1.25W Class-AB 8-Pin HVSSOP EP Tube	點擊下載
74LCX125MTC	Buffers and Line Drivers	Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin TSSOP W Tube	點擊下載
74LCX125MX	Buffers and Line Drivers	Buffer/Line Driver 4-CH Non-Inverting 3-ST CMOS 14-Pin SOIC N T/R	點擊下載
TPA6205A1DRBT	Audio Amplifiers	Audio Amp Speaker 1-CH Mono 1.25W Class-AB 8-Pin VSON EP T/R	點擊下載
SN74LVC1G125DBVR	Buffers and Line Drivers	Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS 5-Pin SOT-23 T/R	點擊下載
TPA6205A1DGNR	Audio Amplifiers	Audio Amp Speaker 1-CH Mono 1.25W Class-AB 8-Pin HVSSOP EP T/R	點擊下載
