說明

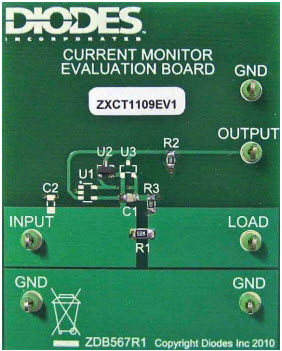

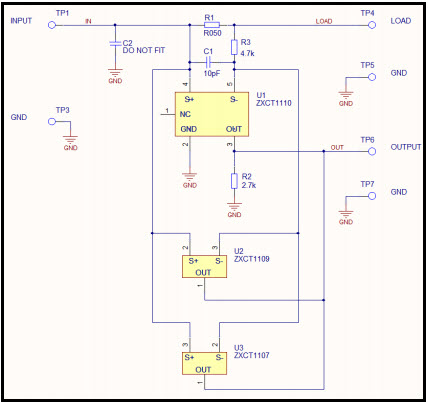

• ZXCT1109EV1, Evaluation Circuit can simply be used to demonstrate the ZXCT1109 Current Monitor integrated circuit which is suitable for a wide range of power systems including automotive, industrial and white goods applications as well as portable and battery management systems. The PCB is designed to accept one of three different current monitor products, the ZXCT1110 (U1), ZXCT1109 (U2) or ZXCT1107 (U3)
