XUPPL4
PCIe FPGA 板是一款基于 Xilinx Virtex UltraScale+ FPGA 的薄型 PCIe x16 卡。 UltraScale+
器件為需要大量數據流和數據包處理的系統提供高性能、高帶寬并減少延遲。該板提供高達 32 GB 的內存、復雜的
時鐘和計時選項以及兩個前面板 QSFP 籠，每個籠支持高達 100 Gbps (4×25) - 包括 100GbE。 XUPPL4 還集成了用于高級系統監控的板管理
控制器 (BMC)，從而大大簡化了平臺集成和管理。所有這些功能相結合，使 XUPPL4 成為各種
數據中心應用的理想選擇，包括網絡處理和安全、加速、存儲、廣播和 SigInt
說明
-

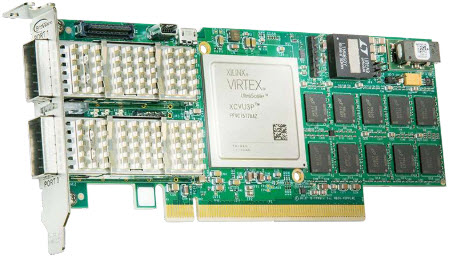

XUPPL4, PCIe FPGA Board is a low-profile PCIe x16 card based on the Xilinx Virtex UltraScale+ FPGA. The UltraScale+ devices deliver high-performance, high-band width, and reduced latency for systems demanding massive data flow and packet processing. The board offers up to 32 GBytes of memory, sophisticated clocking and timing options, and two front panel QSFP cages, each supporting up to 100 Gbps (4×25) - including 100GbE. The XUPPL4 also incorporates a Board Management Controller (BMC) for advanced system monitoring, which greatly simplifies platform integration and management. All of these features combine to make the XUPPL4 ideal for a wide range of data center applications, including network processing and security, acceleration, storage, broadcast, and SigInt
主要特色
-
Embedded System Type
FPGA
-
Family Name
Virtex UltraScale+
