A10PED
PCIe FPGA 板是一款全長 PCIe x8 卡，具有兩個 Intel Arria 10 GX FPGA。 Arria 10 擁有高密度和高能效 FPGA 架構，并結合豐富的功能集，包括高達 15 Gbps 的高速收發器、硬浮點 DSP 模塊和
嵌入式 Gen3 PCIe x8。該主板提供靈活的內存配置，支持混合內存立方體以及高達 32 GB 的內存。兩個 12x
Avago 光纖模塊和一個 QSFP 籠為 FPGA 提供直接高速、低延遲的 I/O。 A10PED 還集成了用于高級系統監控的板管理
控制器 (BMC)，從而大大簡化了平臺管理。所有這些功能相結合，使 A10PED 成為各種應用的理想選擇，包括網絡處理和安全、計算和存儲、儀器儀表、廣播和 SigInt
說明
-

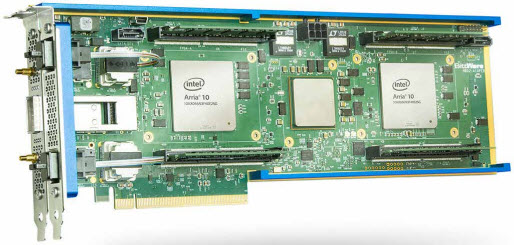

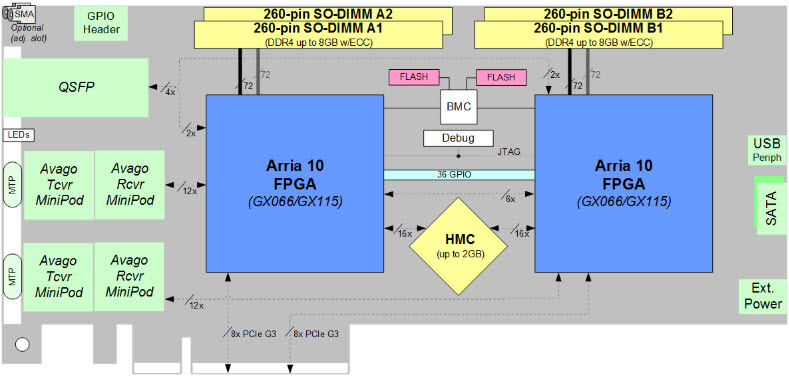

A10PED, PCIe FPGA Board is a full-length PCIe x8 Card featuring two Intel Arria 10 GX FPGAs. The Arria 10 boasts high densities and a power-efficient FPGA fabric married with a rich feature set including high-speed transceivers up to 15 Gbps, hard floating-point DSP blocks, and embedded Gen3 PCIe x8. The board offers flexible memory configurations, supporting a Hybrid Memory Cube along with up to 32 GBytes of memory. Two 12x Avago fiber optic modules and a QSFP cage provide high-speed, low-latency I/O direct to the FPGAs. The A10PED also incorporates a Board Management Controller (BMC) for advanced system monitoring, which greatly simplifies platform management. All of these features combine to make the A10PED ideal for a wide range of applications, including network processing and security, compute and storage, instrumentation, broadcast, and SigInt
主要特色
-
Embedded System Type
FPGA
-
Family Name
Arria 10 GX
