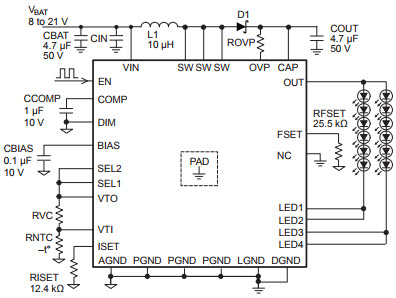

用于以高達 35 V、每個 LED 串 200 mA 的
電流驅動 2 個 LED 串的典型
電路，具有熱降額。 A8501 是一款用于中型 LCD 背光的多輸出 WLED/RGB
驅動器。它集成了一個電流模式升壓
轉換器、內部
電源開關和四個電流吸收器。每個單獨的電流吸收器能夠提供 100 mA 的電流，通道組合起來總電流可達 400 mA。它可以采用 8 至 21 V 的單電源工作，能夠承受低至 6.8 V 和高達 40 V 的瞬態輸入電壓，并具有廣泛的故障模式保護方案。它的目標是用于 OEM 或售后市場的車內遠程信息處理，以及消費和工業 LCD 顯示屏背光
說明
-
Typical circuit for driving 2 LED strings at up to 35 V at 200 mA per LED string, with thermal derating. The A8501 is a multi-output WLED/RGB driver for medium-size LCD backlighting. It integrates a current-mode boost converter with internal power switch and four current sinks. Each individual current sink is capable of 100 mA, and channels can be combined for up to 400 mA total. It can work from a single power supply of 8 to 21 V, with the ability to ride through transient input voltages as low as 6.8 V and as high as 40 V, and has extensive fault mode protection schemes. It is targeted for use in OEM or aftermarket in-cabin telematics, as well as consumer and industrial LCD display backlighting
