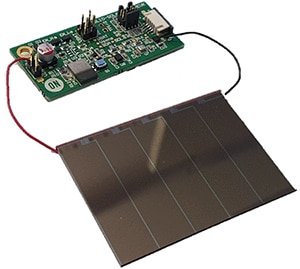

| The RSL10 Solar Cell Multi-Sensor platform is a complete, low-cost solution for developing self-powered sensor nodes using harvested solar energy. Based on the RSL10 SIP- the industry's lowest power Bluetooth ? 5 radio, the RSL10 Solar Cell Multi-Sensor platform supports continuous Bluetooth Low Energy transmission of sensor information without requiring any batteries. The fully-integrated platform features multiple smart sensors, an ultra-low quiescent current LDO regulator (NCP170), and a 2-port connector for the provided solar cell. Also included is a low-profile 47 uF storage capacitor and a programming and debug interface. |
Features
|
|
Applications
|
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| BAT54CL | Schottky Diodes & Schottky Rectifiers | 200 mA, 30 V, Dual Schottky Diode, Common Cathode | 點擊下載 |
| BAT54H | Schottky Diodes & Schottky Rectifiers | 200 mA, 30 V, Schottky Diode | 點擊下載 |
| MAX809 | Voltage Supervisors | Voltage Supervisor, Very Low Supply Current, 3-Pin Microprocessor, Reset Monitor | 點擊下載 |
| RSL10 SIP | Wireless RF Transceivers | 點擊下載 | |
| NCP170 | Linear Regulators (LDO) | LDO Regulator, 150 mA, Ultra-Low Iq | 點擊下載 |
