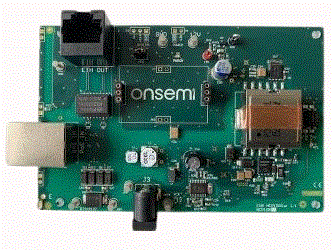

The NCP1083REF12VC4GEVB board allows easy implementation and evaluation of a Power-over-Ethernet powered equipment that is able to operate with an assigned , power level up to 25.5 W. The evaluation board is based on PoE Powered Device controller NCP1083 with integrated PoE PD interface controller and Flyback DC/DC controller. The Flyback converter on this NCP1083 based reference design generates a 12 V output voltage that is isolated from the Ethernet link conductors. The NCP1083REF12VC4GEVB board is designed as a PoE splitter: having a PoE - enabled Ethernet port as input and generating an isolated 12 V supply while passing through the data to another Ethernet port. |
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| BAS16H | Small Signal Switching Diodes | 100 V Switching Diode | 點擊下載 |
| ES1D | Rectifiers | 1.0A Ultra Fast Recovery Rectifier | 點擊下載 |
| FODM8801A | Phototransistor Output - DC Sensing Input Optocouplers | OptoHiT? Series, High-Temperature Phototransistor | 點擊下載 |
| NCP1083 | PoE Powered Devices | Integrated PoE-PD and DC-DC Converter Controller, 40 W, with Auxiliary Supply Support | 點擊下載 |
| NCP431 | Voltage References | Voltage Reference, Low Cathode Current, Programmable, Shunt Regulator | 點擊下載 |
| NTS1260E | Schottky Diodes & Schottky Rectifiers | Trench Schottky Rectifier, Very Low Leakage, 60V, 12A | 點擊下載 |
| NRVTSA4100E | Schottky Diodes & Schottky Rectifiers | Trench Schottky Rectifier, Very Low Leakage, 100V, 4A | 點擊下載 |
| NSR0520V2T1G | Schottky Diodes & Schottky Rectifiers | 500 mA, 20 V, Schottky Barrier Diode | 點擊下載 |
| NSR05T30XV2 | Schottky Diodes & Schottky Rectifiers | 500 mA, 40 V, Schottky Barrier Diode | 點擊下載 |
