說明

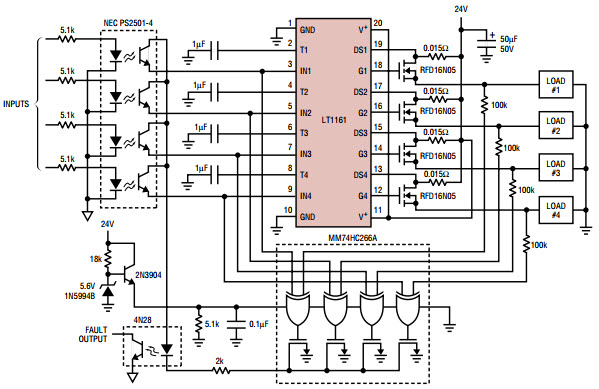

• Typical Application Circuit for LT1161CSW Protected Quad 2A Industrial Switch with Isolated Inputs and Fault Output. The LT1161 is a quad high-side gate driver allowing the use of low cost N-channel power MOSFETs for high-side switching applications. It has four independent switch channels, each containing a completely self-contained charge pump to fully enhance an N-channel MOSFET switch with no external components
