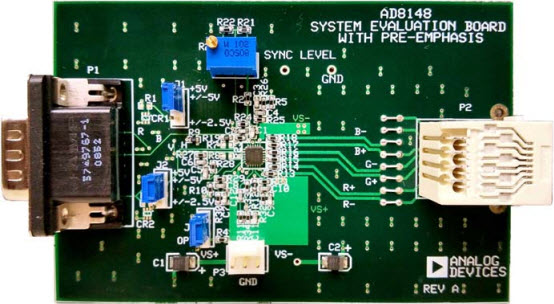

AD8148-EVALZ，用于
寬帶視頻的 AD8148 三路差分
驅動器的評估板。 AD8148 是一款高速三路差分或單端輸入至差分輸出驅動器。 AD8148 的固定增益為 4。AD8148
器件專為最高分辨率分量視頻信號而設計，但可用于通過 5 類 UTP (Cat-5) 電纜或差分電纜進行任何類型的
模擬信號或高速數據傳輸。
印刷電路板 (PCB) 傳輸線。該驅動器可與 AD8145 三路差分轉單端接收器和 AD8117 CrossPoint 開關配合使用，生成能夠支持 UXGA 或 1080p 信號的視頻分配系統
說明
-
AD8148-EVALZ, Evaluation Board for the AD8148 Triple Differential Drivers for Wideband Video. The AD8148 is a high speed triple, differential or single-ended input to differential output drivers. The AD8148 has a fixed gain of 4. The AD8148 device is designed for the highest resolution component video signals but can be used for any type of analog signals or high speed data transmission over either a Category 5 UTP (Cat-5) cable or differential printed circuit board (PCB) transmission lines. This driver can be used with the AD8145 triple, differential to single-ended receiver and the AD8117 CrossPoint switch, to produce a video distribution system capable of supporting UXGA or 1080p signals
主要特色
-
Gain
4 dB
-
Number of Supplies
Single|Dual
-
Supply Voltage
5|±2.5|±5 V
