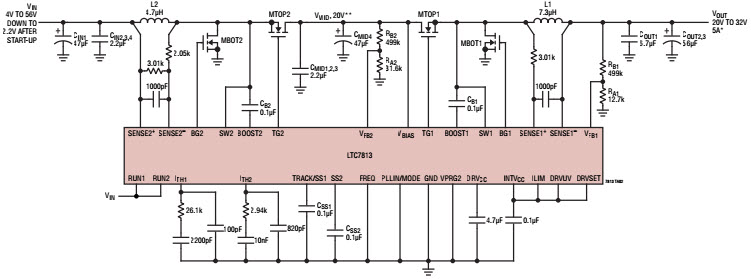

LTC7813HUH 低 EMI、寬輸入范圍直通級聯升壓+降壓
穩壓器的典型應用
電路。 LTC7813 是一款高性能同步升壓+降壓 DC/DC 開關穩壓
控制器，可驅動所有 N 溝道
功率 MOSFET 級。它包含獨立的升壓和降壓控制器，可以調節兩個單獨的輸出，也可以級聯以調節高于、低于或等于輸出電壓的輸入電壓的輸出電壓
說明
-
Typical Application Circuit for LTC7813HUH Low EMI, Wide Input Range Pass-Through Cascaded Boost+Buck Regulator. The LTC7813 is a high performance synchronous Boost+Buck DC/DC switching regulator controller that drives all N-channel power MOSFET stages. It contains independent step-up and step-down controllers that can regulate two separate outputs or be cascaded to regulate an output voltage from an input voltage that can be above, below or equal to the output voltage
主要特色
-
Conversion Type
DC to DC
-
Input Voltage
4 to 56 V
-
Output Voltage
20 to 32 V
-
Output Current
5 A
-
Topology
Buck Boost
