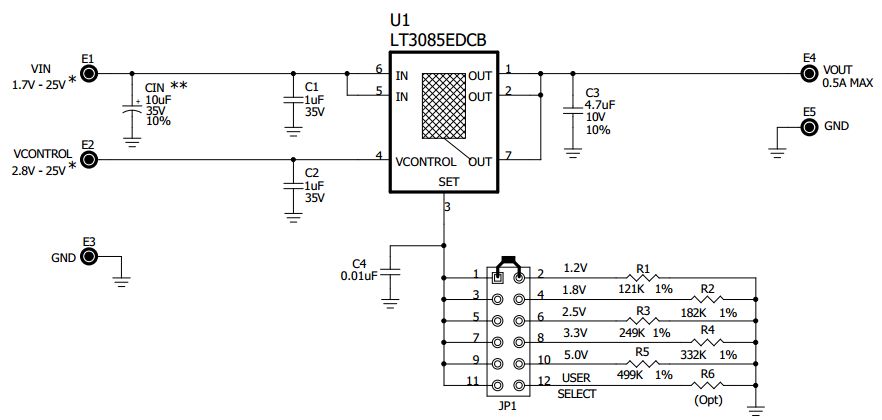

DC1401A，演示電路 1401A 是一款采用 LT3085 的可調 500mA
線性穩壓器。該新型
穩壓器采用精密
電流源和
電壓跟隨器設計，可用于許多需要高電流、零輸出可調性和無散熱器的應用。該器件還引出傳輸
晶體管的集電極，以便在與多個電源一起使用時允許低壓差操作。 LT3085 的一個關鍵特性是能夠提供寬輸出電壓范圍。通過使用流經單個電阻器的參考電流，輸出電壓可設置為 0 至 36V 之間的任意電平
說明
-
DC1401A, Demonstration circuit 1401A is an adjustable 500mA linear regulator featuring LT3085. Architected as a precision current source and voltage follower, it allows this new regulator to be used in many applications requiring high current, adjustability to zero out-put, and no heat sink. Also the device brings out the collector of the pass transistor to allow low dropout operation when used with multiple supplies. A key feature of the LT3085 is the capability to supply a wide output voltage range. By using a reference current through a single resistor, the output voltage can be programmed to any level between zero and 36V
主要特色
-
Conversion Type
DC to DC
-
Input Voltage
1.7 to 25 V
-
Output Voltage
1.2|1.8|2.5|3.3|5 V
-
Output Current
0.5 A
-
Topology
LDO
