EVAL-ADF4212EB1 評估板旨在幫助用戶評估 PLL（
鎖相環）的 ADF4212 頻率合成器的性能。它包含 ADF4212 合成器的占用空間、PC
連接器、用于參考輸入、
電源和
RF 輸出的 SMA 連接器。板上還有一個用于 RF 和 IF 部分的
環路濾波器和 VCO。該板附帶一根電纜，用于連接到 PC 打印機端口。該軟件包還包含 Windows 95/98/NT 軟件，可輕松對合成器進行編程
說明
-

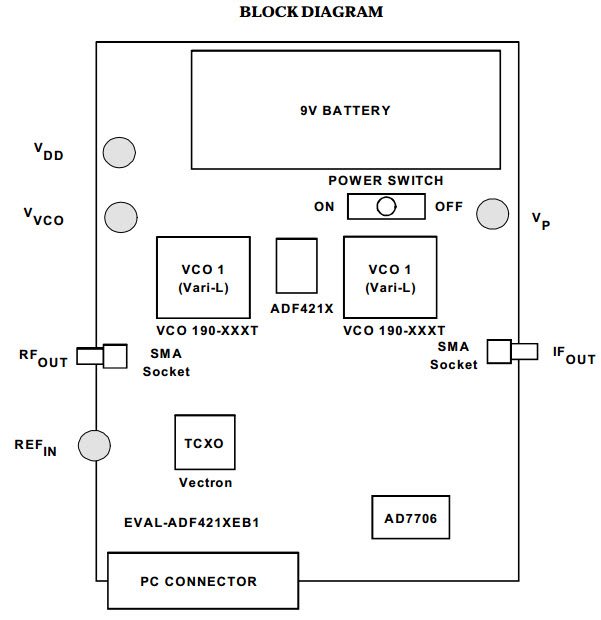

EVAL-ADF4212EB1, Evaluation Board is designed to allow the user to evaluate the performance of the ADF4212 Frequency Synthesizer for PLL's (Phase Locked Loops). It contains the footprint for a ADF4212 synthesizer, a pc connector, SMA connector for the reference input, power supplies and RF output. There is also a loop filter and a VCO for both the RF and IF section on board. A cable is included with the board to connect to a pc printer port. The package also contains Windows 95/98/NT soft-ware to allow easy programming of the synthesizer
