說明

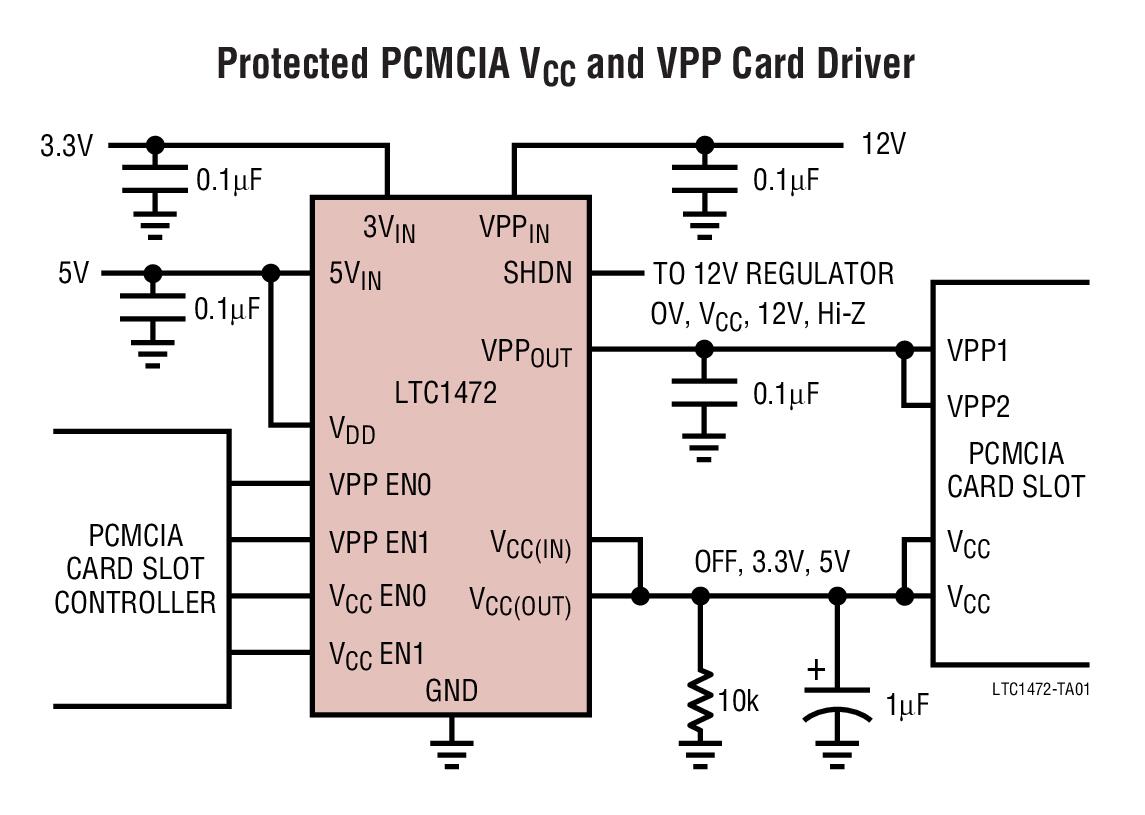

• Typical Application for LTC1472 switching matrix routes power to both the VCC and VPP power supply pins of the PCMCIA compatible card socket. The VCC output of the LTC1472 is switched between three operating states: OFF, 3.3V, and 5V. The VPP output is switched between four operating states: 0V, VCC, 12V, and Hi-Z. The output voltages are selected by two sets of digital inputs which are compatible with industry standard PC Card controllers
