The NXP? 15W multi-coil transmitter reference platform is designed for AutoSAR in-vehicle wireless charging applications based on the NXP MWCT101xS controller IC family. The platform uses auto grade components and other vital automotive functions including AutoSAR software and drivers to ensure the system can be seamlessly integrated. Complies with the Wireless Power Consortium's latest Qi specification and is certified as a MP-A9 transmitter type.
15W AutoSAR Wireless Charging Transmitter - Fact Sheet
更多收起

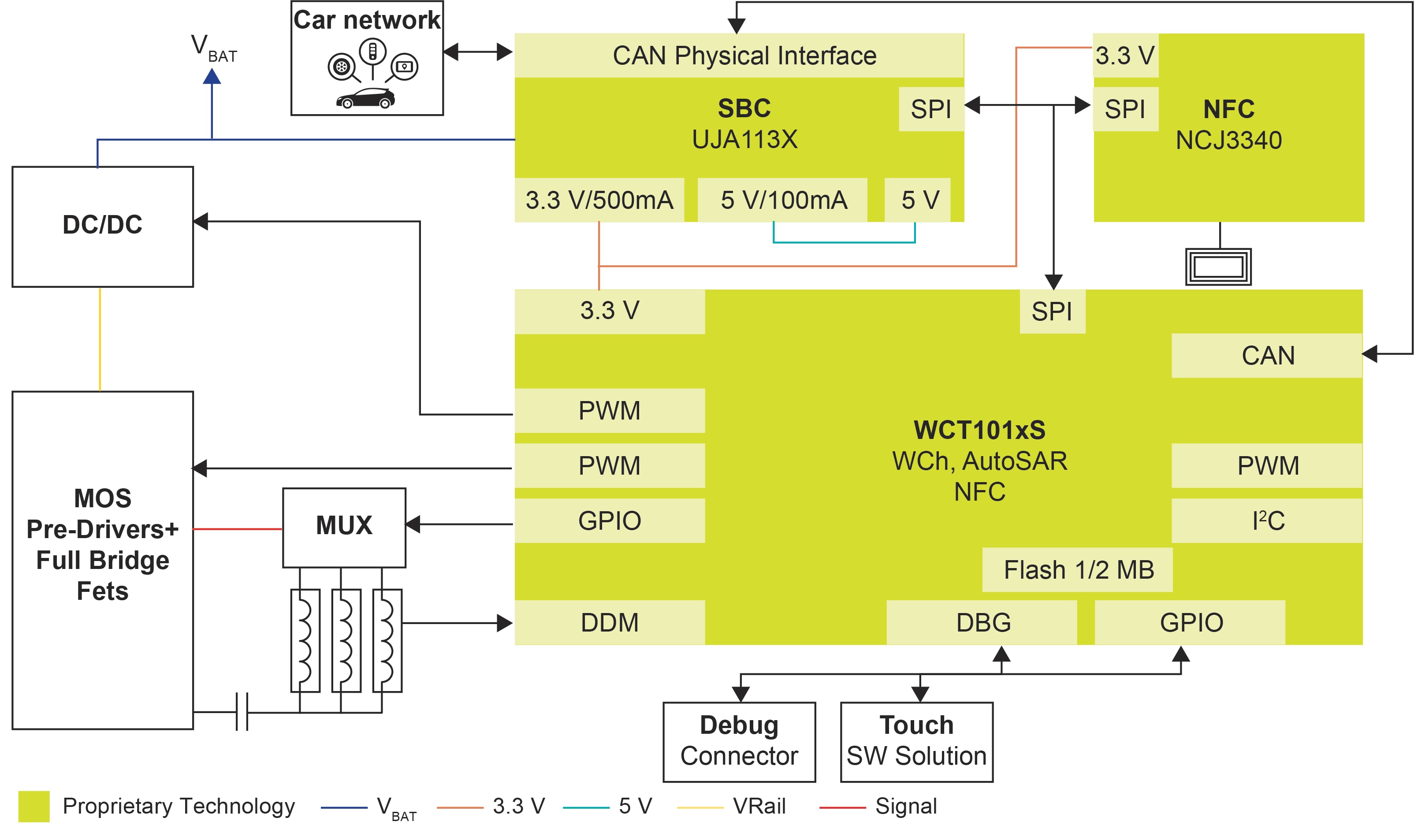

解決方案框圖
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| MWCT101xS | Wireless Charging IC | 15 Watt AutoSAR Wireless Charging Transmitter ICs for Automotive Applications | 點擊下載 |
| UJA113X_SER | SBC | Buck/boost HS-CAN/dual LIN system basis chip | 點擊下載 |
