The TIDA-00792 TI Design provides monitoring, balancing, primary protection and gauging for a 12 to 15 cell lithium-ion or lithium-iron phosphate based batteries. This board is intended to be mounted in an enclosure for industrial systems. The reference design subsystem provides battery protection and gauging configuration with parameters avoiding code development and provides high side protection switching to allow simple PACK- referenced SMBus communication for battery status even while protected.

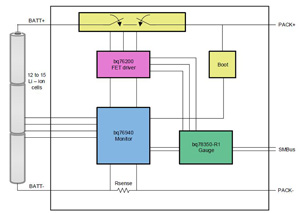

解決方案框圖
！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。
| 器件 | 類型 | 描述 | 數據手冊 |
|---|---|---|---|
| BQ76200 | Battery management ICs? | High-side n-channel FET driver? | 點擊下載 |
| BQ76940 | Battery management ICs? | 9 to 15-series cell li-ion and li-phosphate battery monitor (bq76940 family)? | 點擊下載 |
| BQ78350-R1 | Battery management ICs? | CEDV li-ion gas gauge and battery management controller? | 點擊下載 |
| BQ78350-R1A | Battery management ICs? | CEDV li-ion gas gauge and battery management controller? | 點擊下載 |
| CSD13381F4 | MOSFETs? | 12V, N ch NexFET MOSFET?, single LGA 1.0 x 0.6mm, 180mOhm? | 點擊下載 |
| CSD19536KTT | MOSFETs? | 100V, N ch NexFET MOSFET?, single D2PAK, 2.4mOhm? | 點擊下載 |
| TPD1E10B06 | Circuit protection ICs? | Single-channel ESD in 0402 package with 10pF capacitance and 6-V breakdown? | 點擊下載 |
