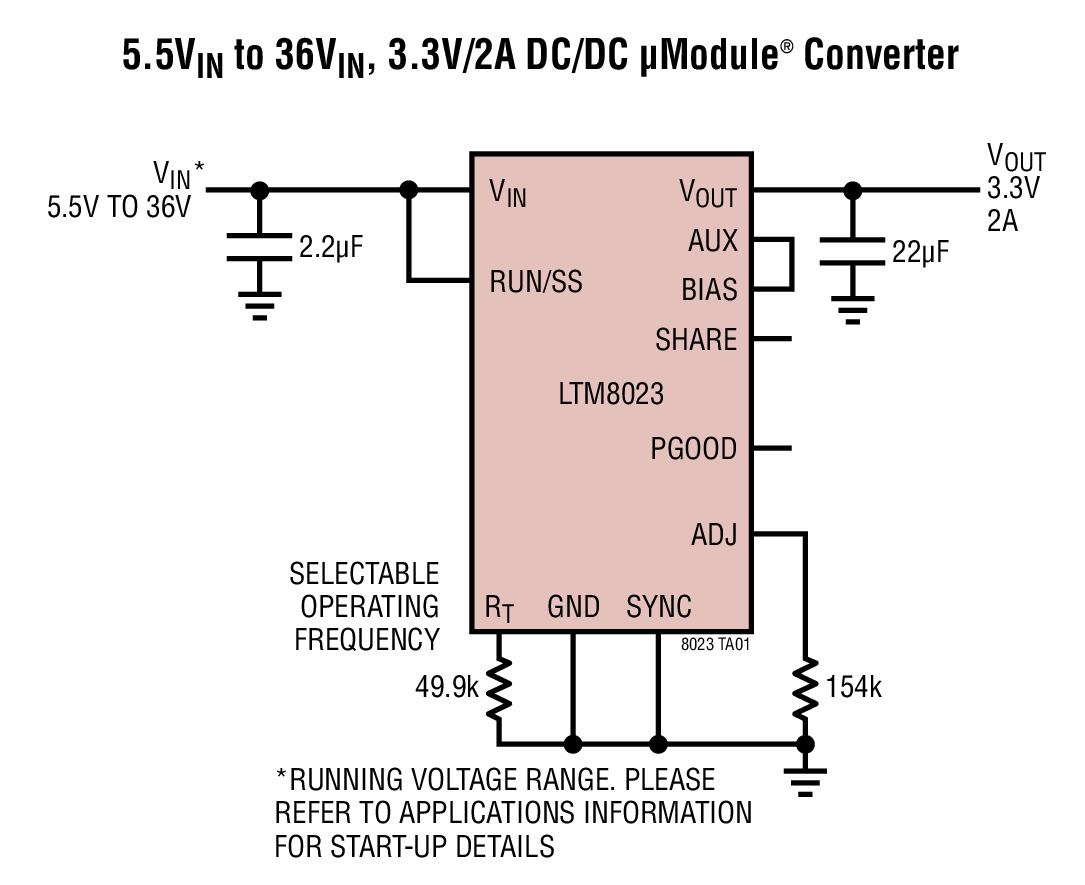

LTM8023 的典型應用 - 2A、36V DC/DC 降壓模塊
穩壓器。 LTM8023 是一款完整的 2A DC/DC 降壓電源。
封裝中包括開關
控制器、電源開關、電感器和所有支持組件。 LTM8023 的工作輸入電壓范圍為 3.6V 至 36V，支持 0.8V 至 10V 的輸出電壓范圍以及 200kHz 至 2.4MHz 的開關頻率范圍，每個范圍均由單個
電阻器設置。只需大容量輸入和輸出濾波
電容器即可完成設計
說明
-
Typical Application for LTM8023 - 2A, 36V DC/DC Step-Down module Regulator. The LTM8023 is a complete 2A, DC/DC step-down power supply. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8023 supports an output voltage range of 0.8V to 10V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design
主要特色
-
Conversion Type
DC to DC
-
Input Voltage
5.5 to 36 V
-
Output Current
2 A
-
Topology
Buck
