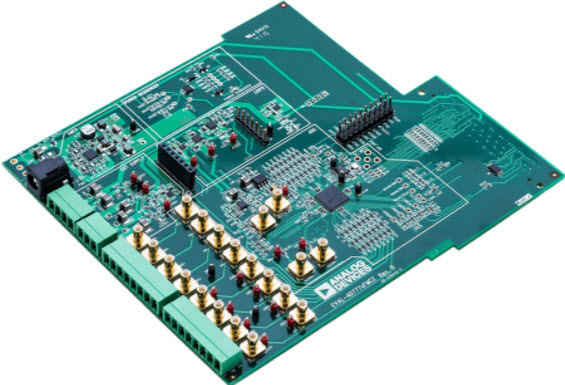

EVAL-AD7770FMCZ 評估套件采用 AD7770 24 位
模數轉換器 (ADC)。該板與系統演示平臺 SDP-H1
控制器板 (EVAL-SDP-CH1Z) 連接。 SDP-H1 控制器板為 EVAL-AD7770FMCZ 評估板供電，并通過 USB 電纜連接到運行 Windows
操作系統的 PC。 AD777x 評估軟件全面配置 AD7770、AD7771 和 AD7779
器件寄存器功能，并以波形圖、直方圖和相關噪聲分析的形式提供直流和交流時域分析，以進行 ADC 性能評估。 EVAL-AD7770FMCZ 評估板允許用戶評估 ADC 的功能。用戶 PC 軟件可執行文件通過 USB 電纜通過 SDP-H1 控制器板控制 AD7770
說明
-
EVAL-AD7770FMCZ, Evaluation Kit features the AD7770, 24-bit analog-to-digital converter (ADC). The board interfaces with the system demonstration platform SDP-H1 controller board (EVAL-SDP-CH1Z). The SDP-H1 controller board supplies power to the EVAL-AD7770FMCZ evaluation board and also connects to a PC running a Windows operating system via a USB cable. The AD777x evaluation software fully configures the AD7770, AD7771, and AD7779 device register functionality and provides dc and ac time domain analysis in the form of waveform graphs, histograms, and associated noise analysis for ADC performance evaluation. The EVAL-AD7770FMCZ evaluation board allows the user to evaluate the features of the ADC. The user PC software executable controls the AD7770 over the USB cable through the SDP-H1 controller board
