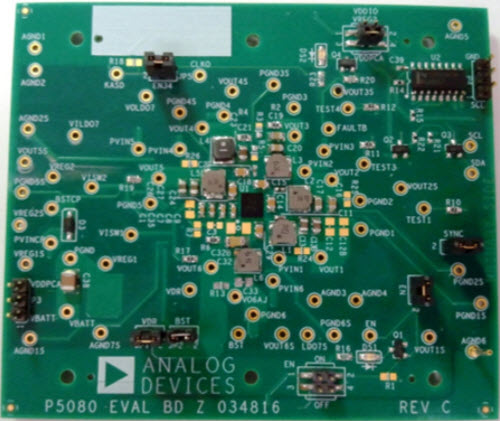

ADP5080CB-1EVALZ 評估板是一款完整的多節輸入、6+通道輸出
電源管理解決方案，允許用戶評估 ADP5080 的性能和功能。該評估板可以作為具有默認設置的獨立單元運行。 ADP5080CB-1-EVALZ 評估板與 GUI 軟件和
USB 轉 I2C 接口相結合，可實現所有通道的完全可編程性，包括輸出電壓、開關頻率、啟動順序和故障保護。 ADP5080 是一款高度集成的 PMU，所有通道均具有內部同步 FET、內部補償和集成驅動電壓
電荷泵。所有通道的開關頻率均設置為 1 MHz，并且可通過 I2C 在 750 kHz 至 2 MHz 范圍內進行編程。開關也可以同步到外部
時鐘
說明
-
ADP5080CB-1EVALZ, Evaluation Board is a complete multi cell input, 6+ channel output, power management solution that allows users to evaluate the performance and functionality of the ADP5080. The evaluation board can operate as a standalone unit with the default settings. Combined with the GUI software and USB to I2C interface, the ADP5080CB-1-EVALZ evaluation board allows complete programmability of all channels, including the output voltage, switching frequency, startup sequence and fault protection. The ADP5080 is a highly integrated PMU with internal synchronous FETs on all channels, internal compensation and an integrated drive voltage charge pump. The switching frequency is set to 1 MHz for all channels, and is programmable from 750 kHz to 2 MHz via I2C. Switching can also be synchronized to an external clock
