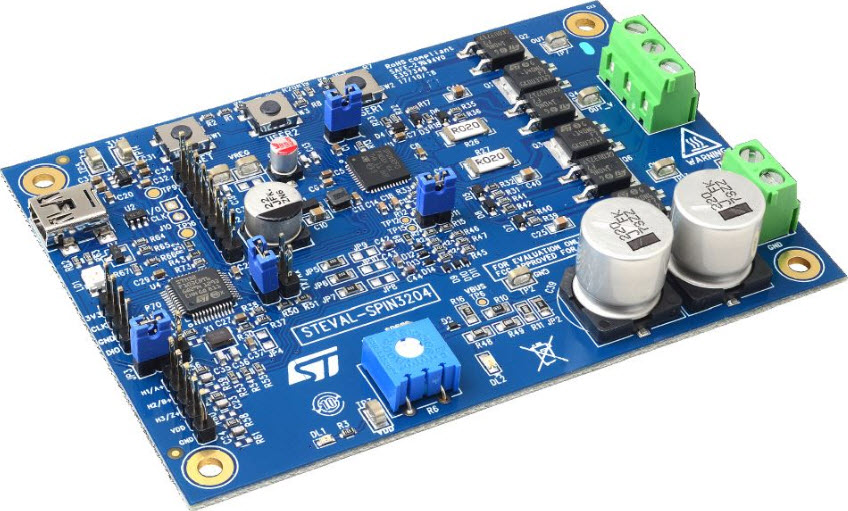

STEVAL-SPIN3204 三相無刷
直流電機驅動器評估板基于 STSPIN32F0B 三相 BLDC 控制器，具有三重半橋
柵極驅動器、單分流電阻器電流感應拓撲和可編程
過流保護。
電機控制器系統級封裝包括一個 STM32F031C6
微控制器，可在固件中執行 6 步磁場定向控制 (FOC) 和其他高級驅動算法，可通過板 USB 端口將其下載到芯片閃存上。該板旨在幫助您測試和開發電動工具、家用電器、風扇和泵等應用的電機控制設計，并具有靈活的評估平臺，甚至允許您在外部傳感器和無傳感器位置反饋數據方法之間切換
說明
-
STEVAL-SPIN3204, 3-phase brushless DC motor driver Evaluation Board is based on the STSPIN32F0B 3-phase BLDC controller with triple half-bridge gate driver, single shunt resistor current sensing topology and programmable over-current protection. The motor controller system-in-package includes an STM32F031C6 microcontroller ready to execute 6-step, field oriented control (FOC) and other advanced driving algorithms in the firmware, which can be downloaded onto the chip flash memory via the board USB port. The board is designed to help you test and develop motor control designs for applications such as power tools, home appliances, fans and pumps, with a flexible evaluation platform that even allows you to toggle between external sensor and sensorless position feedback data methods
