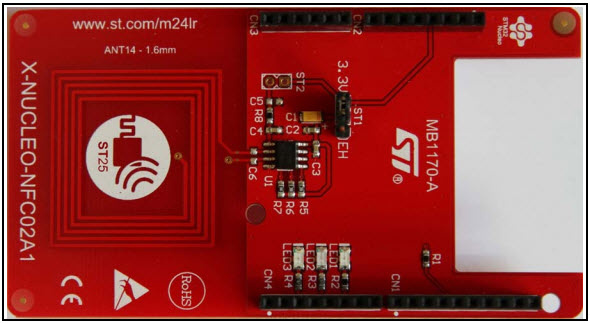

• X-NUCLEO-NFC02A1, Dynamic NFC tag IC Expansion Board based on M24LR04E for STM32 Nucleo. It is a Dynamic NFC/RFID Tag IC with a dual-interface Electrically Erasable Programmable Read-Only Memory (EEPROM) that also features an I2C interface. The M24LR04E-R is a 4 KByte EEPROM organized as 512 x 8 bits in the I2C mode and as 128 x 32 bits in RF mode. It can be operated either from an external power supply or directly powered by the received carrier electromagnetic field. The tag provides a user configurable digital output pin toggling during either RF Write in Progress or RF Busy mode
