The external pins make it easy to inject SMED events and capture the SMED controlled PWM clock, thereby helping the user to validate the SMED configuration. Alternatively, the application circuit can be driven directly from the evaluation board.
The board provides a micro-USB connector to allow programming, GUI connectivity and configuration via a terminal utility running on a PC.
STLUX controllers integrate a serial interface which can be used to extend the STLUX communication capabilities via Bluetooth, WiFi or powerline modems.

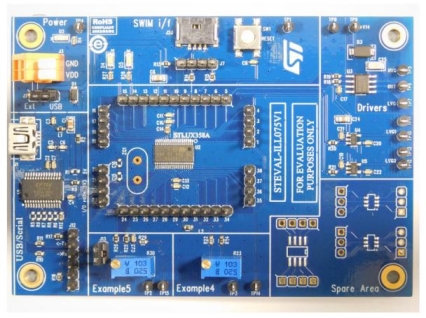

The STEVAL-ILL075V1 evaluation board can be powered in three different ways: by external power supply, USB or via the SWIM interface.
The board features several free footprint areas which are ideal for connecting power drivers or amplifiers.
An additional free PCB footprint allows the user connect a quartz clock, which can be used in place of the STLUX385A internal clock.
