P-NUCLEO-USB002、STUSB1602 USB Type-C 和帶有 NUCLEO-F072RB 的供電 Nucleo 包

使用 STMicroelectronics 的 STUSB1602 的參考設計

設計簡介

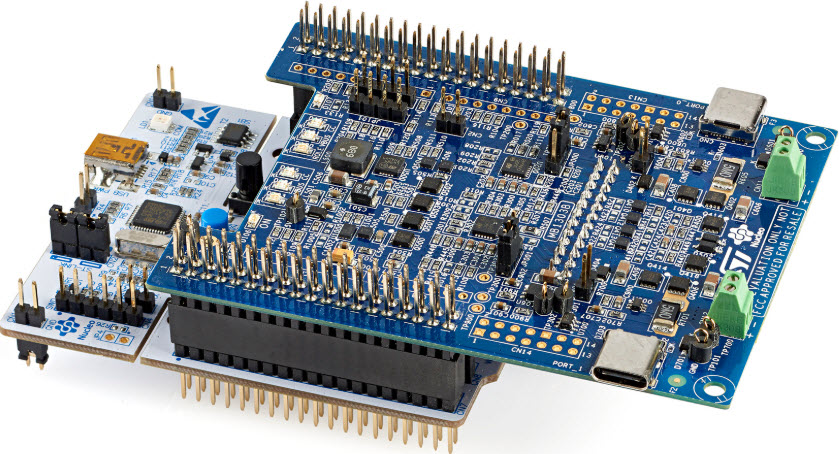

P-NUCLEO-USB002，評估套件 P-NUCLEO-USB002 套件旨在利用基于 ARM Cortex-M0 和兩個 STUSB1602 USB Type-C 端口控制器的 STM32F072 32 位微控制器的性能，開發管理多達兩個 USB Type-C 端口。這些組件與經過 X-CUBE-USB-PD 認證的 STM32F0 USB Type-C PD 中間件堆棧一起構成了一個平臺，用于演示 USB Type-C 和 USB 供電 (USB PD) 功能并促進解決方案開發。新的 USB PD 協議通過用于數據通信的同一根電纜提供高達 100 W 的功率，從而擴展了 USB 功能

說明

P-NUCLEO-USB002, Evaluation kit The P-NUCLEO-USB002 kit is designed to exploit the performance of the STM32F072 32-bit microcontroller based on ARM Cortex-M0 and two STUSB1602 USB Type-C port controllers, to develop applications managing up to two USB Type-C ports. These components, together with the X-CUBE-USB-PD certified STM32F0 USB Type-C PD middleware stack, form a platform for demonstrating USB Type-C and USB Power Delivery (USB PD) capabilities and facilitating solution development. The new USB PD protocol expands USB functionality by providing up to 100 W power over the same cable used for data communication

主要特色

Interface Standards

USB 1.3|USB 2.0|USB 3.0

參考設計下載

相關文檔

8dm00381978
