EB-GS2985-Q 評估包旨在加速具有均衡和去加重功能的 GS2985 多速率 SDI

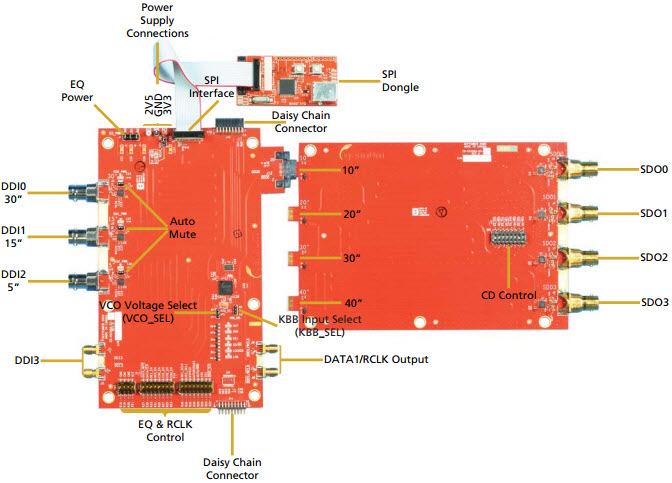

時鐘恢復器的評估過程。 EB-GS2985-Q（四通道）是一款四通道評估板，其用途是評估 GS2985 3G 視頻時鐘恢復器 (RCLK)。它還具有三個 GS2984 3G
均衡器（EQ0、EQ1、EQ2）和四個 GS2988 3G 電纜
驅動器（CD0、CD1、CD2、CD3）。 GS2985 是一款多速率串行數字時鐘恢復器，旨在自動從數字視頻信號恢復
嵌入式時鐘并對傳入視頻數據重新定時。它將恢復嵌入的時鐘信號并對來自 SMPTE-424M、SMPTE 292M 或 SMPTE 259M-C 兼容數字視頻信號的數據進行重新定時
說明
-
EB-GS2985-Q, Evaluation Package is designed to accelerate the evaluation process of the GS2985 Multi-rate SDI Reclocker with Equalization and De-emphasis. The EB-GS2985-Q (quad) is a quad channel evaluation board and its purpose is to evaluate the GS2985 3G Video Reclocker (RCLK). It also features three GS2984 3G Equalizers (EQ0, EQ1, EQ2) and four GS2988 3G Cable Drivers (CD0, CD1, CD2, CD3). The GS2985 is a multi-rate serial digital Reclocker designed to automatically recover the embedded clock from a digital video signal and retime the incoming video data. It will recover the embedded clock signal and retime the data from a SMPTE-424M, SMPTE 292M, or SMPTE 259M-C compliant digital video signal
