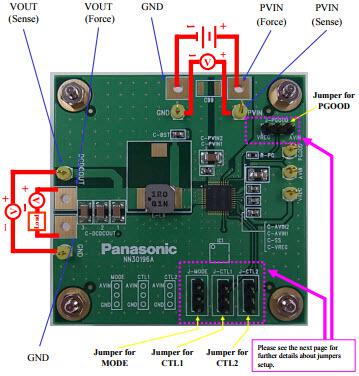

NN30196A-EVB，NN30196A 的評估板是一款具有集成功率 MOSFET 的同步 DC-DC 降壓
穩壓器（1 通道），采用遲滯控制系統。通過該系統，當
負載電流突然變化時，它可以高速響應，并將輸出電壓的變化降至最低。由于可以使用小
電容的
電容器，并且無需添加用于系統
相位補償的外部部件，因此該IC實現了裝置的小型化和外部部件的數量減少。輸出電壓可由用戶調節。最大電流9A
說明
-
NN30196A-EVB, Evaluation Board for the NN30196A is a synchronous DC-DC Step Down Regulator (1-ch) with integrated power MOSFETs, which employs hysteretic control system. By this system, when load current changes suddenly, it responds at high speed and minimizes the changes of output voltage. Since it is possible to use capacitors with small capacitance and it is unnecessary to add external parts for system phase compensation, this IC realizes downsizing of set and reducing in the number of external parts. Output voltage is adjustable by user. Maximum current is 9A
主要特色
-
Conversion Type
DC to DC
-
Input Voltage
4.5 to 5.6 V
-
Output Voltage
0.6 to 3.5 V
-
Output Current
9 A
-
Topology
Buck
