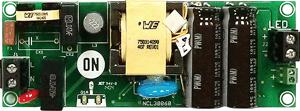

NCL30060LED1GEVB、90 至 305 Vac 輸入、隔離式 700mA、25W LED 驅動器評估板

使用 ON Semiconductor 的 NCL30060 的參考設計

設計簡介

NCL30060LED1GEVB、90 至 305 Vac 輸入、隔離式 700mA、25W LED 驅動器評估板。 NCL30060 開關模式電源控制器的評估板適用于中低功率單級功率因數 (PF) 校正 LED 驅動器。它采用恒定導通時間控制方法，確保在寬輸入電壓和輸出功率范圍內接近單位功率因數。它可用于隔離反激式以及降壓拓?fù)洹Ｔ?a href="http://www.nncyjs.com/zhuanti/SKmPy9" style="color: #4595e6;" target="_blank">器件提供一套強大的保護功能，確保在一系列故障條件下安全運行

說明

NCL30060LED1GEVB, 90 to 305 Vac Input, Isolated 700-mA, 25-W LED Driver Evaluation Board. The Evaluation board for the NCL30060 switch mode power supply controller intended for low to medium power single stage power factor (PF) corrected LED Drivers. It employs a constant on-time control method to ensure near unity power factor across a wide range of input voltages and output power. It can be used for isolated flyback as well as buck topologies. The device offers a suite of robust protection features to ensure safe operation under a range of fault conditions

主要特色

Input Voltage

90 to 305 (AC) V
Output Voltage

10 to 41 V
Output Current

0.7 A
Output Power

25 W
Number of Derived Elements

1

參考設計下載

相關文檔

evbum2240-d

！注意：請使用瀏覽器自帶下載，迅雷等下載軟件可能無法下載到有效資源。

相關器件

器件	類型	描述	數據手冊
NL17SZ17DFT2G	Buffers and Line Drivers	Schmitt Trigger Buffer 1-CH Non-Inverting CMOS 5-Pin SC-88A T/R	點擊下載
PS2513L-1-A	Transistor and Photovoltaic Output Photocouplers	DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD Magazine	點擊下載
LM2904DR2G	Op Amps	Op Amp Dual GP ±16V/32V 8-Pin SOIC N T/R	點擊下載
NCP431AVSNT1G	Voltage References	V-Ref Adjustable 2.5V to 36V 100mA 3-Pin SOT-23 T/R	點擊下載
TLV271SN1T1G	Op Amps	Op Amp Single Low Bias Current Amplifier R-R O/P ±8V/16V 5-Pin TSOP T/R	點擊下載
NCL30060BDR2G	LED Drivers	LED Driver 20000uA Supply Current 7-Pin SOIC T/R	點擊下載
NCL30060B2DR2G	LED Drivers	LED Driver 20000uA Supply Current 7-Pin SOIC T/R	點擊下載
NCL30060B3DR2G	LED Drivers	LED Driver 1.8V/2.5V/3.3V/5V/9V/12V/15V/18V/24V 7-Pin SOIC T/R	點擊下載
